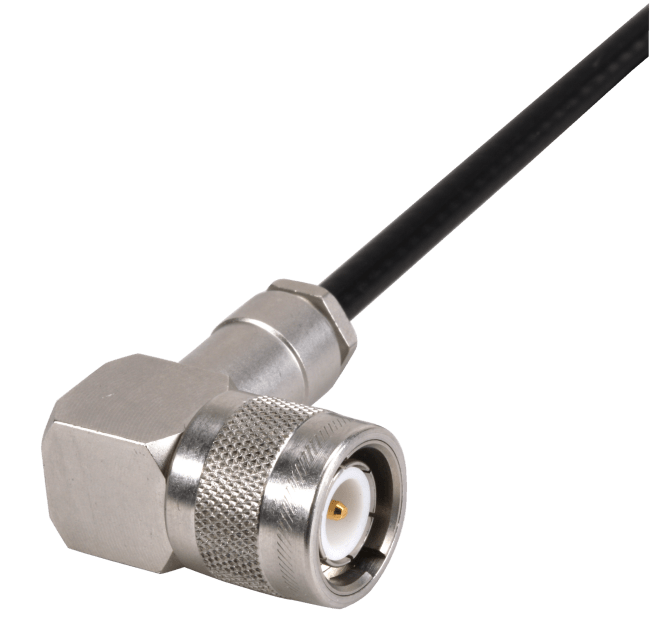

16 C-50-3-3/133NE

Produktnummer: 22642051
Huber Suhner
Lagerbeholdning:

Cable Entry Centre Contact soldered
Cable Entry Outer Contact clamped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group Connectors U9
Cable Retention Force 125N
Cable1 RG_223_/U
Cable2 RG_142_B/U
Centre Contact Material Copper Beryllium / Brass
Centre Contact Plating SUCOPRO / Gold Plating
Connector Description Right angle cable plug
CONNECTOR SERIES C
Coupling Nut Material Brass
Coupling Nut Plating SUCOPLATE (R) Plating
Dielectric Size 3mm
Gasket Material VMQ (Silicone rubber)
Gender plug
ID 16_C-50-3-3/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 11GHz
Interface Standards IEC 60169-7_MIL-STD-348A/302
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165°C
Operating Temperature min. -65°C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Single
PATTERN CLASSES 16
Weight 0.0551kg
CONNECTOR SHAPE right-angle
Type Number 16_C-50-3-3/133_NE
OBJECT_ID 8098938
