| Cable Entry Centre Contact |
soldered |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
Silver Plating |
| Cable Group |
S32 |
| Cable Retention Force |
661 N |
| Cable1 |
S_07262_BD |
| Cable2 |
S_07212_BD |
| Cable3 |
SX_07262_BD |
| Centre Contact Material |
Brass |
| Centre Contact Plating |
Silver Plating |

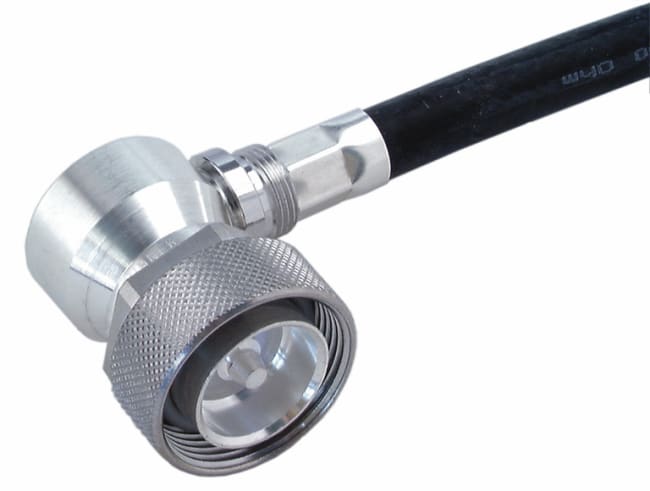

| Connector Description |
Right angle cable plug |
| CONNECTOR SERIES |
7/16 |
| Coupling Nut Material |
Brass |
| Coupling Nut Plating |
SUCOPLATE (R) Plating |
| Crimp Ferrule Material |
Brass |
| Crimp Ferrule Plating |
Silver Plating |
| Dielectric Size |
7 mm |
| Gasket Material |
VMQ (Silicone rubber) |
| Gender |
plug |
| Highlight1 |
Reduced radiation resistant |
| ID |
16_716-50-7-11/003_- |
| Impedance |
50 |
| Insulator Material |
PE (Polyethylene) |
| Interface Frequency max. |
7.5 GHz |
| Interface Standards |
IEC 61169-4_CECC 22190_DIN 47223_VG 95250 |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
Silver Plating |
| Packaging |
Single |
| PATTERN CLASSES |
16 |
| Weight |
0.1556 kg |
| CONNECTOR SHAPE |
right-angle |
| Type Number |
16_716-50-7-11/003_-E |
| OBJECT_ID |
3019175 |
