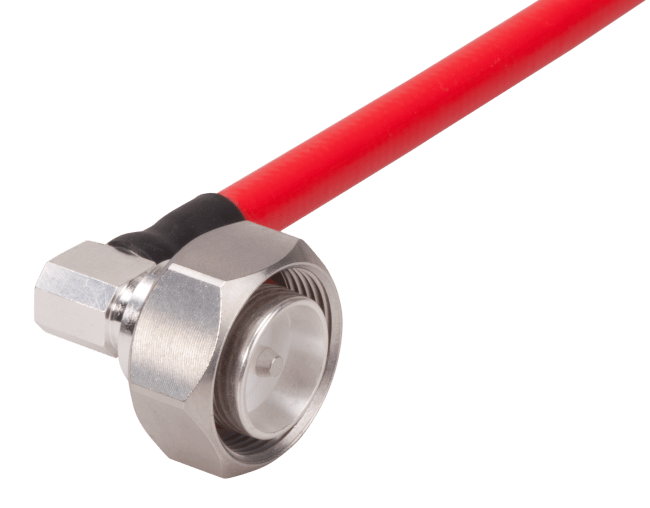

16_4310-50-3-X1/003_-H
Coaxial connector
4.3-10, 50 Ohm, Right angle cable male
H+S | |
---|---|
Interface type | 4.3-10 |
Operation temperature | -55 °C ... 90 °C |
Suitable cables | SUCOFORM_141_CU |
Coupling nut | Brass / SUCOPLATE (R) Plating |
Outer conductor | Brass / Silver Plating |
Product code | 16_4310-50-3-X1/003_- |
Gasket | VMQ (Silicone rubber) |
Insulator | PTFE (Polytetrafluoroethylene) |
Centre contact | Brass / Silver Plating |
Interface frequency | 12 GHz |
Available as assembly only | No |
Cable group | Y12 , Y12 - 3 mm / 50 Ohm |
Body | Brass / Silver Plating |
Cable entry centre contact | soldered |
Standard | IEC 61169-54 |
Mating cycles | 100 |
Impedance | 50 Ω |
Weight | 0.0287 kg |
Cable entry outer contact | soldered |
Gender | plug |
