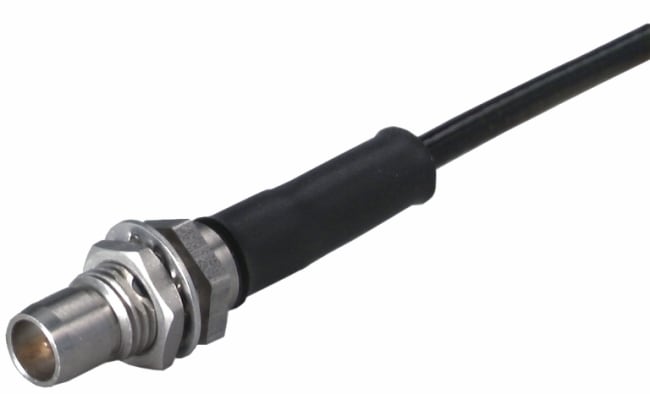

14 BMA-50-2-3/199NE
Coaxial connector
|BMA, 50 Ohm, Straight bulkhead cable female
| Flange Type | hexagonal flange |
| Fastening Nut Material | Stainless Steel |
| Panel Thickness | 3mm |
| Engangement Force max. | 14N |
| Washer Material | Bronze |
| Flange Dimension | hex 8 |
| Washer Plating | SUCOPLATE (R) Plating |
| Disengagement Force min. | 2N |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Stainless Steel |
| Cable Group Connectors | U2 |
| Cable Retention Force | 250N |
| Cable1 | RG_316_/U |
| Cable2 | RG_188_A/U |
| Cable3 | RG_174_/U |
| Centre Contact Material | Copper Beryllium / Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight bulkhead cable plug |
| CONNECTOR SERIES | BMA |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | Nickel Plating |
| Dielectric Size | 2mm |
| Gender | plug |
| ID | 14_BMA-50-2-3/199_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 18GHz |
| Interface Standards | IEC 60169-33_MIL-STD-348A/321 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | bulkhead |
| Number of Matings | 1000 |
| Operating Temperature max. | 125°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Stainless Steel |
| Packaging | Single |
| PATTERN CLASSES | 14 |
| Weight | 0.0035kg |
| CONNECTOR SHAPE | straight |
| Type Number | 14_BMA-50-2-3/199_NE |
| OBJECT_ID | 3018997 |
