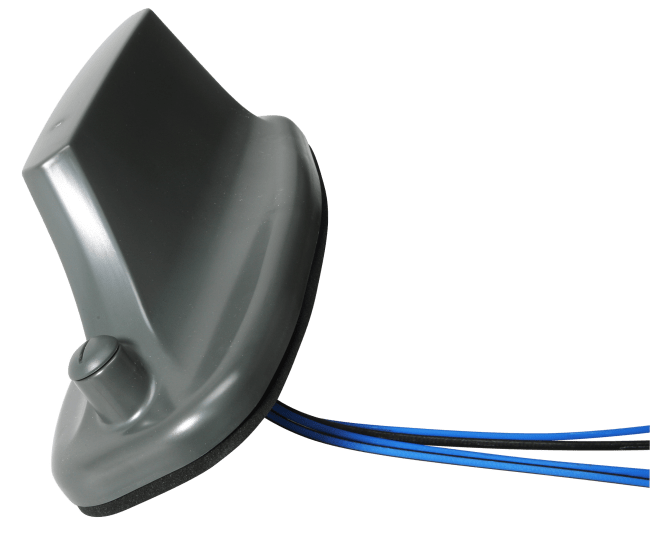

1399.99.0127
| H+S | |
|---|---|
| LNA is connected to | Port 4 |
| Radome material | ASA (acrylic ester-styrene-acrylonitrile) |
| Ingress protection (IP Rating) | Mated / IP68, IP69 |
| Dimensions | 82 mm x 83 mm x 208 mm (Height x Width x Depth) |
| Back plate/base plate material | Aluminium |
| Remarks | For further information please refer to data sheet. , Indicated VSWR are valid for a metal ground plane of min. 500x500mm. Available stick antennas see section 'Related products'. , Stick antenna max. length = 0.5m , Values for LNA power consumption, noise figure and gain are given for a 5V operating voltage and may differ slightly for a lower voltage |
| Transport temperature | -40 °C ... 85 °C |
| Current cunsumption | 30 mA |
| Radome colour | RAL 7043 (dark grey) |
| Solar radiation | DIN 75220 |
| Bands | 410 MHz ... 430 MHz, VSWR 2, Gain 4 dBi2400 MHz ... 2690 MHz, VSWR 1.8, Gain 7 dBi4900 MHz ... 5935 MHz, VSWR 1.8, Gain 7 dBiGPS/Glonass: 1574 MHz ... 1610 MHz, VSWR 2 |
| Antenna family | SENCITY Road |
| Flammability rating | ECE-R118 |
| Storage temperature | -40 °C ... 85 °C |
| Operation temperature | -40 °C ... 85 °C |
| Mounting breakthrough | Ø 30 mm |
| Noise figure | 2 dB |
| Product code | 1399.99.0127 |
| Total gain @90° elevation | 30 dBic |
| Input voltage | 3 V ... 5 V |
| Weight | 0.41 kg |
