| Height |
87mm |
| Frequency min. 3 |
1447MHz |
| Frequency min. 4 |
1695MHz |
| Frequency min. 5 |
2170MHz |
| Frequency min. 2 |
790MHz |
| VSWR |
1.5, 1.5, 1.5, 1.7, 1.5, 1.5 |
| Environment remarks |
Plenum rated pigtail cable (UL2043) |
| Isolation |
20dB |
| Ambient temperature |
25°C |
| Radome Colour |
white |
| Transport Temperature min. |
-55°C |
| Accessory |
9091.99.0258 |
| Operation Temperature max. |
55°C |
| Configuration |
MiMo 2x2 |
| Band 8 |
false, false, false, false, false, false |
| Foot notes |
Item number: 85080511 |
| Band 3 |
false, true, true, false, false, false |
| Weight |
0.82kg |
| Connector position |
back |
| Band 1 |
false, false, false, false, true, true |
| Band 6 |
true, true, false, false, false, false |
| Operating Temperature min. |
0°C |
| Polarisation Port |
vertical, vertical |
| Transport Temperature max. |
85°C |
| Band 5 |
true, false, true, false, false, false |
| Notes |
Indoor DAS omni-directional antenna for In-Building Coverage 698 MHz up to 3800 MHz AMPS, GSM, PCS, CDMA, UMTS, WiFi, WLAN 2.4, LTE Antenna ETL listed for Plenum space (UL 2043) Design Patent DM/088510 4.3-10+ female connectors on Plenum pigtails |
| Storage Temperature min. |
-55°C |
| Band 7 |
false, false, false, false, true, true |
| Connector type |
4.3-10, 4.3-10 |
| Composite power max. |
300W |
| Frequency1 |
1900 |
| Product family |
SENCITY® Rondo |
| Radome |
PC (Polycarbonate) |
| Frequency max. 5 |
2700MHz |
| Frequency max. 4 |
2170MHz |
| Gain |
2dBi |
| Environment |
indoor |
| Grounding |
true, true |
| Recycling Label |
true |
| Storage Temperature max. |
85°C |
| Impedance [Ω] |
50 |
| Connector gender |
jack (female), jack (female) |
| Band 4 |
false, false, true, true, false, false |
| Flammability rating |
UL 94-V0 |
| Product is Lead-Free Soldered |
true |
| Band 2 |
true, true, false, false, false, false |
| Mounting1 |
fixed |
| Service1 |
DECT (1.9 GHz) |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1367 |
| Frequency max. 2 |
960MHz |
| Frequency max. 3 |
1660.5MHz |
| Description |

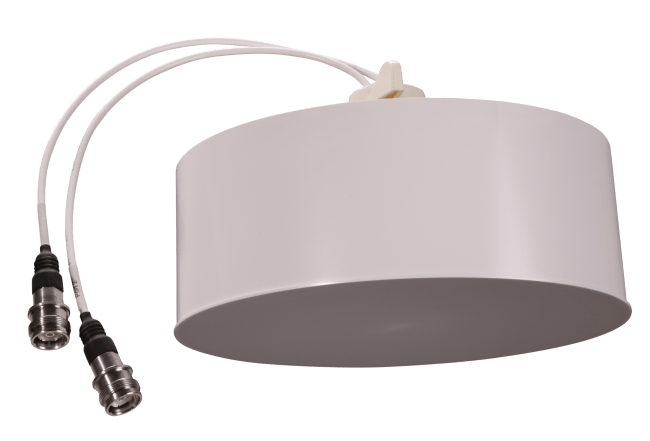

SENCITY® Rondo MIMO Antenna |
| Frequency max. 1 |
790MHz |
| Frequency min. 1 |
698MHz |
| ID |
1399.31.0010 |
| 2011/65/EC (RoHS) |
compliant |
| OBJECT_ID |
7234382 |
