| Height |
101mm |
| Frequency min. 2 |
5150MHz |
| Band 5 |
false, false, false, false, false, false |
| Halfp Beamwidth Vertical |
55° |
| VSWR |
1.5, 1.5 |
| Notes |

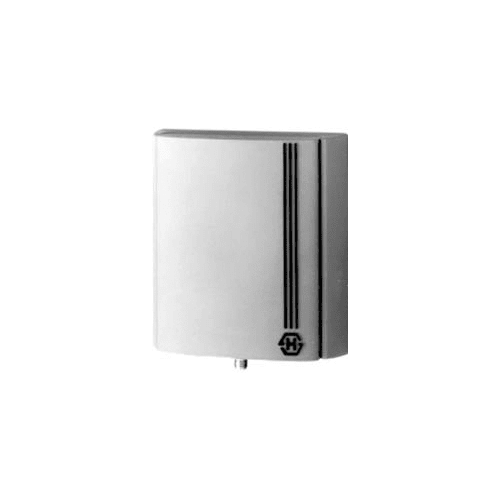

SENCITY Spot-S planar indoor antenna Directional, linear polarised WiFi dual-band antenna with single port WiFi / WLAN IEEE 802.11 a/b/g/h Dual - band 2.4 to 2.5 GHz and 5.15 to 5.875 GHz Wall mounting socket included |
| Storage Temperature min. |
-40°C |
| Band 7 |
false, false, false, false, false, false |
| Composite power max. |
10W |
| Isolation |
25dB |
| Frequency1 |
2400-2500 |
| Product family |
SENCITY® Spot-S indoor |
| Ambient temperature |
25°C |
| Radome Colour |
RAL 7035 (light-grey) |
| Front to Back Ratio |
15dB |
| Radome |
ASA (acrylic ester-styrene-acrylonitrile) |
| Transport Temperature min. |
-40°C |
| Accessory |
9091.99.0080 |
| Operation Temperature max. |
80°C |
| Gain |
9dBi |
| Environment |
indoor |
| Configuration |
SiSo |
| Depth |
32mm |
| Band 8 |
false, false, false, false, false, false |
| Grounding |
false |
| Recycling Label |
true |
| Band 3 |
false, false, false, false, false, false |
| Weight |
0.11kg |
| Width |
95mm |
| Storage Temperature max. |
80°C |
| Impedance [Ω] |
50 |
| Connector position |
bottom |
| Connector gender |
jack (female) |
| Band 1 |
false, false, false, false, false, true |
| Band 4 |
false, false, false, false, false, false |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-40°C |
| Polarisation Port |
vertical |
| Transport Temperature max. |
80°C |
| Product is Lead-Free Soldered |
true |
| Mechanical Remarks |
Mounting socket material: ASA Mounting socket colour: RAL 7042 |
| Band 2 |
true, false, false, false, false, false |
| Halfp Beamwidth Horizont |
75° |
| Included mounting material |
Wall mounting material |
| Mounting1 |
fixed |
| Service1 |
Wi-Fi 4 (2.4-2.5, 5.1-5.8 GHz) |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1367 |
| Frequency max. 2 |
5875MHz |
| Connector type |
SMA |
| Description |
SENCITY® Spot-S Indoor Antenna |
| Frequency max. 1 |
2500MHz |
| Frequency min. 1 |
2400MHz |
| ID |
1399.19.0026 |
| 2011/65/EC (RoHS) |
compliant |
| OBJECT_ID |
7251199 |
