| Height |
184.8mm |
| Frequency min. 3 |
2300MHz |
| Frequency min. 4 |
3300MHz |
| Frequency min. 5 |
3800MHz |
| Frequency min. 2 |
1920MHz |
| Halfp Beamwidth Vertical |
105° |
| VSWR |
2, 2, 2, 2, 2 |
| Isolation |
20dB |
| Ambient temperature |
25°C |
| Radome Colour |
RAL 7035 (light-grey) |
| Front to Back Ratio |
11dB |
| Transport Temperature min. |
-40°C |
| Accessory |
9091.99.0274 |
| Operation Temperature max. |
70°C |
| Configuration |
MiMo 2x2 |
| IP Rating |
IP66 |
| Depth |
84.2mm |
| Band 8 |
false, false, false, false, false, false |
| Band 3 |
false, true, true, false, false, false |
| Weight |
0.5kg |
| Width |
164.6mm |
| Band 1 |
false, false, false, false, true, true |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-40°C |
| Polarisation Port |
45° slant, +45° slant |
| Transport Temperature max. |
70°C |
| Halfp Beamwidth Horizont |
100° |
| Band 5 |
true, false, true, false, false, false |
| Notes |
Outdoor MIMO 2x2directional antenna (1695-2690 and 3300-4200MHz) with: H-HPBW 110° (1.7-2.7 GHz) 110° (3.3-4.2 GHz) Low PIM With N connectors |
| Storage Temperature min. |
-40°C |
| Band 7 |
false, false, false, false, false, false |
| Connector type |
false, false |
| Composite power max. |
125W |
| Frequency1 |
1700-2200 |
| Product family |
SENCITY® URBAN 200 |
| Radome |
PC (Polycarbonate) |
| Frequency max. 5 |
4200MHz |
| Frequency max. 4 |
3800MHz |
| Gain |
5.7dBi |
| Environment |
indoor/outdoor |
| Grounding |
false, false |
| Recycling Label |
true |
| Storage Temperature max. |
70°C |
| Impedance [Ω] |
50 |
| Connector gender |
jack (female), jack (female) |
| Band 4 |
false, false, true, true, false, false |
| Flammability rating |
UL 94-V0 |
| Product is Lead-Free Soldered |
true |
| Band 2 |
true, true, false, false, false, false |
| Mounting1 |
fixed |
| Service1 |
Cellular (1.7, 1.8, 1.9, 2.1 GHz) |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1367 |
| Frequency max. 2 |
2180MHz |
| Frequency max. 3 |
2690MHz |
| Description |

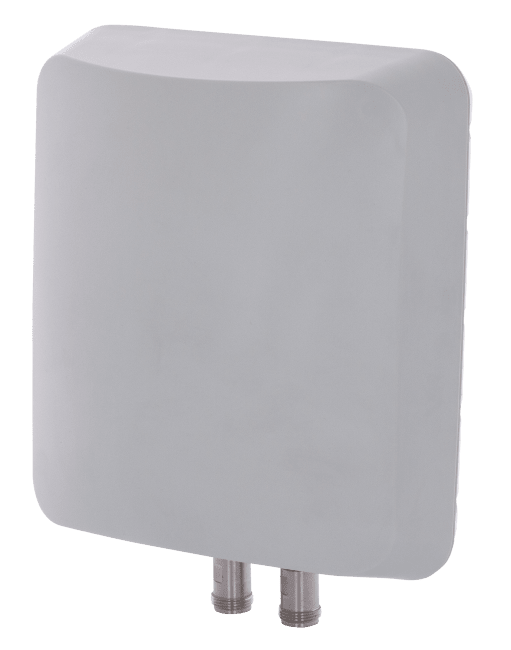

SENCITY® Urban 200 |
| Frequency max. 1 |
1920MHz |
| Frequency min. 1 |
1695MHz |
| ID |
1399.17.0250 |
| 2011/65/EC (RoHS) |
compliant |
| OBJECT_ID |
8034537 |
