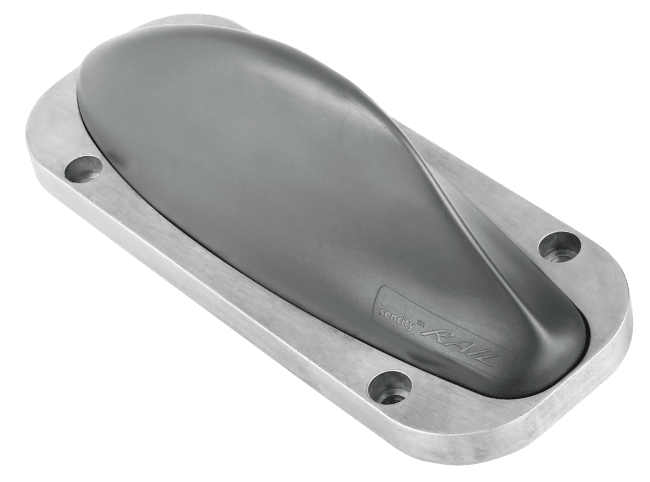

1399.17.0122
| H+S | |
|---|---|
| Radome material | PC (Polycarbonate) |
| Ingress protection (IP Rating) | IP67, IP69 |
| Dimensions | 90 mm x 100 mm x 256 mm (Height x Width x Depth) |
| Environment (application) | Outdoor |
| Back plate/base plate material | Aluminum |
| Remarks | For further information please refer to data sheet. , Indicated VSWR values are valid for a metallic ground plane of 0.5 x 0.5m or larger. In the 790-5935 MHz band, Indicated VSWR values are also valid for installations on non-metallic surfaces (no specific ground plane requirements). Indicated gain values will be achieved on a metallic ground plane of 1 x 1 m or larger.High-voltage-protection: no voltage on RF port, if the catenary line touches antenna (EN 50124-1, 27.5 kVAC/1min).High-current-protection: Designed acc. to UIC 533, DC-grounded antenna element protection against lightning and short circuit with catenary lines (EN50388, EN 50122-1, 40kA/0.1sec) , Corrosion: Low corrosion design according to MIL-F-14072(E), 96 hours Salt Spray test.Mounting: Shall be installed in longitudinal position to the wind/driving direction.Suitable for installation on high-speed trains with a maximum speed of 500 km/hr. |
| Transport temperature | -55 °C ... 85 °C |
| Radome colour | RAL 7043 (dark grey) |
| Solar radiation | UL 746C, F1 |
| Bands | 694 MHz ... 790 MHz, VSWR 2, Gain 5 dBi790 MHz ... 960 MHz, VSWR 1.5, Gain 5 dBi1350 MHz ... 1710 MHz, VSWR 2.2, Gain 6 dBi1710 MHz ... 2700 MHz, VSWR 1.5, Gain 6 dBi2700 MHz ... 3300 MHz, VSWR 1.5, Gain 8.5 dBi3300 MHz ... 4900 MHz, VSWR 1.7, Gain 7 dBi4900 MHz ... 6425 MHz, VSWR 1.5, Gain 7.5 dBi |
| Antenna family | SENCITY® Rail |
| Back plate/base plate plating | Passivated (Plating) |
| Storage temperature | -55 °C ... 85 °C |
| Back plate/base plate colour | Grey |
| Product code | 1399.17.0122 |
| Weight | 0.8 kg |
| Flammability rating | EN 45545-2 R24 HL3 |
| Operation temperature | -55 °C ... 85 °C |
