| Height |
190mm |
| Band 5 |
false, false, false, false, false, false |
| Halfp Beamwidth Vertical |
17° |
| Windload at Wind Speed |
160km/h |
| Notes |
Directional high gain antenna for Wi-Fi 5 bands. Supports 2X2 WiFi MIMO. Supports from 5.15 GHz to 5.875 GHz frequency bands. For outdoor or indoor applications |
| Storage Temperature min. |
-55°C |
| Standards 1 |
Industrie EN 60068 |
| Standards 2 |
Railway EN 50125 |
| Band 7 |
false, false, false, false, false, false |
| Connector type |
false, false |
| Composite power max. |
6W |
| Isolation |
30dB |
| Frequency1 |
5100-6000 |
| Product family |
SENCITY® Spot-M |
| Ambient temperature |
25°C |
| Vertical Electrical Tilt |
0° |
| Radome Colour |
RAL 9002 (grey-white) |
| Front to Back Ratio |
30dB |
| Radome |
PC (Polycarbonate) |
| Transport Temperature min. |
-55°C |
| Accessory |
9091.99.0201 |
| Wind Speed operational |
160km/h |
| Operation Temperature max. |
70°C |
| Gain |
19dBi |
| Environment |
indoor/outdoor |
| Configuration |
MiMo 2x2 |
| IP Rating |
IP67 |
| Depth |
30mm |
| Band 8 |
false, false, false, false, false, false |
| Frontal windload |
105N |
| Recycling Label |
true |
| Band 3 |
false, false, false, false, false, false |
| Weight |
0.7kg |
| Width |
190mm |
| Storage Temperature max. |
70°C |
| Impedance [Ω] |
50 |
| Connector position |
back |
| Connector gender |
jack (female), jack (female) |
| Band 1 |
false, false, false, false, true, true |
| Band 4 |
false, false, false, false, false, false |
| Flammability rating |
UL 94-HB |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-55°C |
| Polarisation Port |
horizontal, vertical |
| Transport Temperature max. |
70°C |
| Survival Wind Speed |
220km/h |
| Product is Lead-Free Soldered |
true |
| Mechanical Remarks |
Connection portsTwo connectors on the back plane - one per each polarization |
| Band 2 |
false, false, false, false, false, false |
| Halfp Beamwidth Horizont |
17° |
| Mounting1 |
fixed |
| Service1 |
Wi-Fi 5 (5.1-5.8, GHz) |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1367 |
| Description |

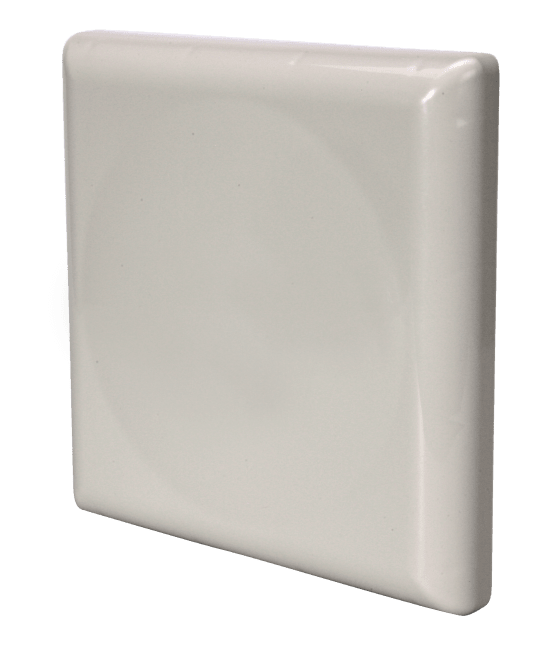

SENCITY® Spot-M 2x2 WiFi MIMO Antenna |
| Frequency max. 1 |
5875MHz |
| Frequency min. 1 |
5150MHz |
| ID |
1356.17.0023 |
| 2011/65/EC (RoHS) |
compliant |
| VSWR |
1.7 |
| OBJECT_ID |
8346726 |
