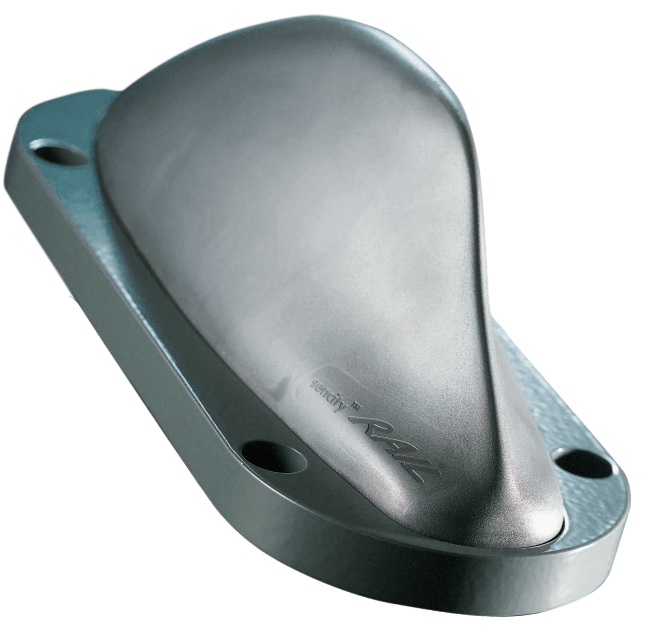

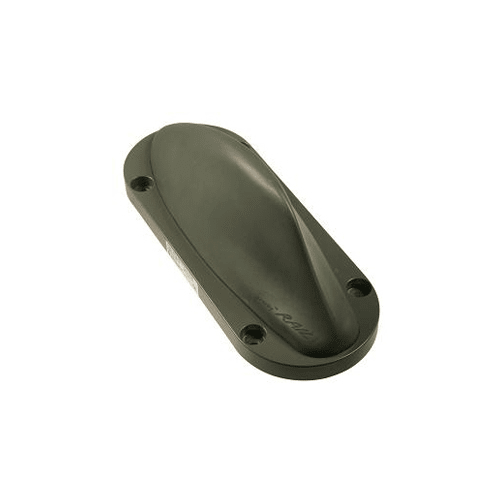

1356.17.0010
H+S | |
---|---|
Radome material | PC (Polycarbonate) |
Ingress protection (IP Rating) | IP67, IP69 |
Dimensions | 90 mm x 100 mm x 260 mm (Height x Width x Depth) |
Windload | Wind Speed survival: 500 km/h |
Environment (application) | Outdoor |
Back plate/base plate material | Aluminum |
Remarks | For further information please refer to data sheet. , Indicated VSWR values are also valid for installations on non-metallic surfaces (no specific ground plane requirements). Indicated gain values will be achieved on a metallic ground plane of 1 x 1 m or larger.High-voltage-protection: no voltage on RF port, if the catenary line touches antenna (EN 50124-1, 27.5 kVAC/1min).High-current-protection: Designed acc. to UIC 533, DC-grounded antenna element protection against lightning and short circuit with catenary lines (EN50388, EN 50122-1, 40kA/0.1sec) , Corrosion: Low corrosion design according to MIL-F-14072(E), 96 hours Salt Spray test.Mounting: Shall be installed in longitudinal position to the wind/driving direction.Suitable for installation on high-speed trains with a maximum speed of 500 km/hr. |
Transport temperature | -55 °C ... 85 °C |
Radome colour | RAL 7043 (dark grey) |
Solar radiation | UL 746C, F1 |
Bands | 4900 MHz ... 5150 MHz, VSWR 1.6, Gain 12 dBi5150 MHz ... 5975 MHz, VSWR 1.7, Gain 12 dBi |
Antenna family | SENCITY® Rail Excel |
Storage temperature | -55 °C ... 85 °C |
Back plate/base plate colour | RAL 7043 (dark grey) |
Product code | 1356.17.0010 |
Weight | 1.4 kg |
Flammability rating | EN 45545-2 R24 HL3 |
Operation temperature | -55 °C ... 85 °C |
