| Height |
240mm |
| Frequency min. 3 |
5150MHz |
| Frequency min. 2 |
4800MHz |
| Band 5 |
false, false, false, false, false, false |
| Halfp Beamwidth Vertical |
20° |
| VSWR |
1.7, 1.7, 1.5 |
| Notes |

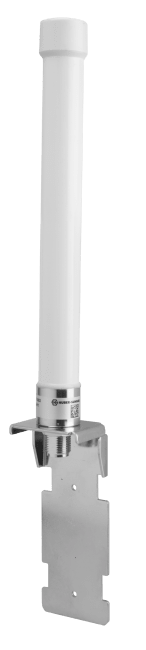

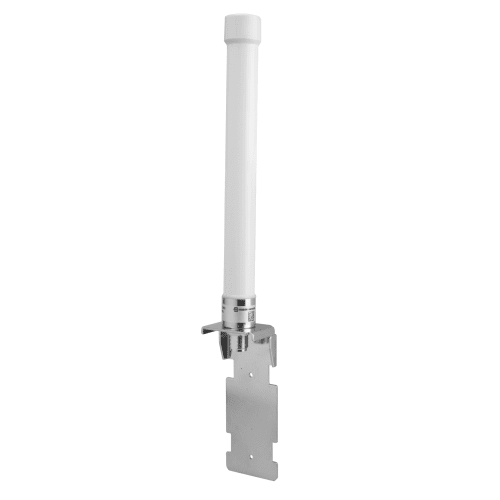

Omni-directional dual-band WiFi stick antenna for application with WiFi standards IEEE 802.11 a/p/h/b/g/y/n/ac. Working in the frequency bands 2.3 - 2.5 GHz and 4.8 to 6 GHz. Gain 6 dBi, vertical polarized antenna. Ingress protection IP 67 (IEC 60529). For outdoor and indoor applications ** Wall- or pole mount with L-bracket *** |
| Storage Temperature min. |
-55°C |
| Band 7 |
false, false, false, false, false, false |
| Composite power max. |
30W |
| Frequency1 |
2400-2500 |
| Product family |
SENCITY® Omni Stick |
| Ambient temperature |
25°C |
| Radome Colour |
RAL 9003 (signal white) |
| Radome |
Glass Fibre |
| Transport Temperature min. |
-40°C |
| Accessory |
9091.99.0173 |
| Operation Temperature max. |
85°C |
| Gain |
6dBi |
| Environment |
indoor/outdoor |
| Configuration |
SiSo |
| IP Rating |
IP67 |
| Band 8 |
false, false, false, false, false, false |
| Grounding |
false |
| Recycling Label |
true |
| Band 3 |
false, true, false, false, false, false |
| Weight |
0.3kg |
| Storage Temperature max. |
85°C |
| Impedance [Ω] |
50 |
| Connector position |
bottom |
| Connector gender |
jack (female) |
| Band 1 |
false, false, false, false, false, false |
| Band 4 |
false, false, false, true, false, false |
| Flammability rating |
UL 94-HB |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-40°C |
| Polarisation Port |
vertical |
| Transport Temperature max. |
85°C |
| Product is Lead-Free Soldered |
true |
| Mechanical Remarks |
INCLUDED MOUNTING MATERIAL: Bracket 9091.99.0173 and 2 metal-bands for mast-diameter 25mm - 101mm, all piece parts made of stainless steel |
| Band 2 |
true, false, false, false, false, false |
| Halfp Beamwidth Horizont |
360° |
| Mounting1 |
fixed |
| Service1 |
Wi-Fi 4 (2.4-2.5, 5.1-5.8 GHz) |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1367 |
| Frequency max. 2 |
5150MHz |
| Frequency max. 3 |
6000MHz |
| Connector type |
false |
| Description |
SENCITY® Omni-M dual-band WiFi Stick Antenna |
| Frequency max. 1 |
2500MHz |
| Frequency min. 1 |
2300MHz |
| ID |
1355.17.0003 |
| 2011/65/EC (RoHS) |
compliant |
| OBJECT_ID |
8034553 |
