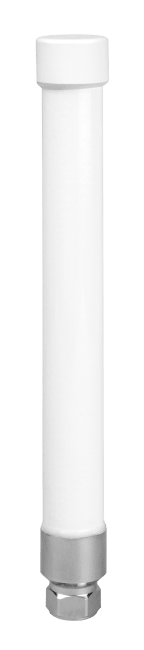

1355.17.0002
H+S | |
---|---|
Radome material | Glass Fibre |
Ingress protection (IP Rating) | IP67 |
Dimensions | 250 mm x 25 mm (Height x Diameter) |
Environment (application) | Indoor/Outdoor |
Remarks | For further information please refer to data sheet. , Design for direct access point mount to style N (female) connector |
Transport temperature | -40 °C ... 85 °C |
Radome colour | RAL 9003 (signal white) |
Antenna configuration | SiSo |
Bands | 2300 MHz ... 2500 MHz, VSWR 1.5, Gain 6 dBi4800 MHz ... 5150 MHz, VSWR 2, Gain 5 dBi5150 MHz ... 6100 MHz, VSWR 2, Gain 6 dBi |
Antenna family | SENCITY® Omni Stick |
Flammability rating | UL 94-HB |
Storage temperature | -55 °C ... 85 °C |
Operation temperature | -40 °C ... 85 °C |
Product code | 1355.17.0002 |
Weight | 0.15 kg |
