1355.17.0001
H+S | |
---|---|
Radome material | Plastic |
Ingress protection (IP Rating) | IP67 |
Dimensions | 305 mm x 305 mm x 15 mm (Height x Width x Depth) |
Windload | front: 263 N at 160 km/h, lateral: 13 N at 160 km/h, Wind Speed survival: 220 km/h |
Environment (application) | Indoor/Outdoor |
Back plate/base plate material | Aluminum |
Remarks | For further information please refer to data sheet. , Side lobes level ETSI EN 302 326-3 V1.1.2 DN3Cross polarization ETSI EN 302 326-3 V1.1.2 DN3 |
Transport temperature | -45 °C ... 70 °C |
Radome colour | RAL 9002 (grey-white) |
Bands | 4900 MHz ... 5150 MHz, VSWR 2, Gain 22 dBi5150 MHz ... 6100 MHz, VSWR 2, Gain 23 dBi |
Flammability rating | UL 94-HB |

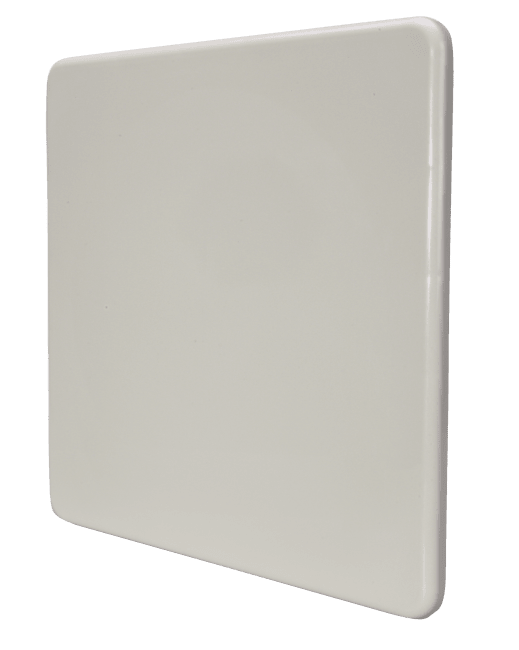

Antenna family | SENCITY® Spot-L |
Storage temperature | -45 °C ... 70 °C |
Operation temperature | -45 °C ... 70 °C |
Product code | 1355.17.0001 |
Weight | 1.2 kg |
