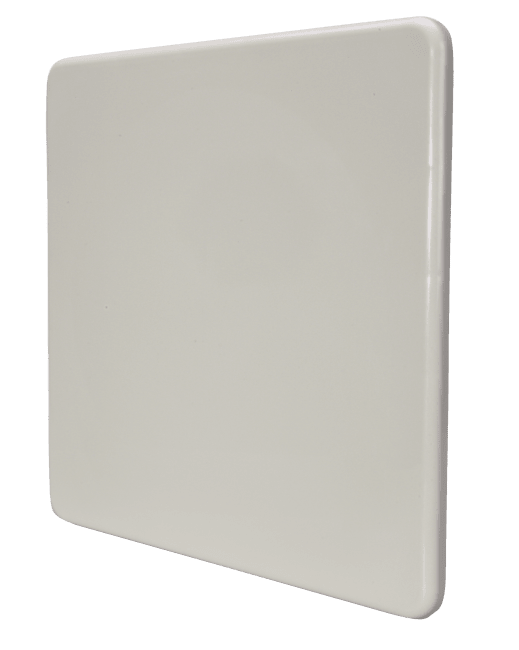

1354.17.0001
| H+S | |
|---|---|
| Radome material | Plastic |
| Ingress protection (IP Rating) | IP67 |
| Dimensions | 305 mm x 305 mm x 15 mm (Height x Width x Depth) |
| Windload | front: 263 N at 160 km/h, lateral: 13 N at 160 km/h, Wind Speed survival: 220 km/h |
| Environment (application) | Indoor/Outdoor |
| Back plate/base plate material | Aluminum |
| Remarks | For further information please refer to data sheet. |
| Radome colour | RAL 9002 (grey-white) |
| Bands | 4900 MHz ... 5150 MHz, VSWR 1.9, Gain 22 dBi5150 MHz ... 5875 MHz, VSWR 1.7, Gain 23 dBi |
| Antenna family | SENCITY® Spot-L |
| Storage temperature | -45 °C ... 70 °C |
| Product code | 1354.17.0001 |
| Weight | 1.2 kg |
| Flammability rating | UL 94-HB |
| Operation temperature | -45 °C ... 70 °C |
