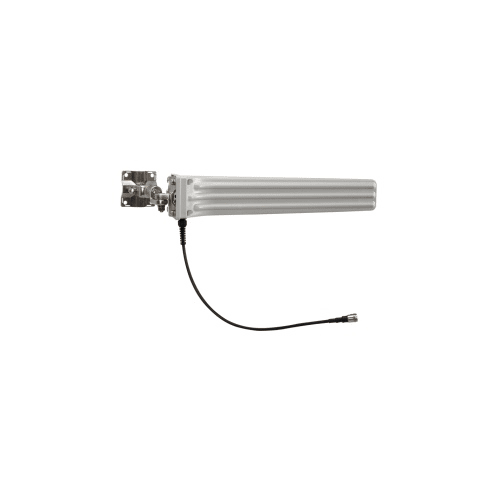

1324.17.0116
H+S | |
---|---|
Radome material | PC (Polycarbonate) |
Ingress protection (IP Rating) | Mated / IP65 |
Dimensions | 80 mm x 420 mm x 80 mm (Height x Width x Depth) |
Windload | front: 16 N at 220 km/h, lateral: 162 N at 220 km/h, Wind Speed survival: 220 km/h |
Environment (application) | Indoor/Outdoor |
Remarks | For further information please refer to data sheet. , The antennas signal ground is electrically isolated from ground of the backplane/bracket.DC grounding of the antenna radiator is achieved by electrical connection to the outer conductor of the RF cable pigtail (signal ground). , Mounting holes: M6 (max. 7mm diameter)Bracket: flexible in all 3 axes for tilting and rotation of antenna. Allows mast/roof/wall mounting |
Transport temperature | -40 °C ... 70 °C |
Radome colour | RAL 7044 (grey) |
Antenna configuration | SiSo |
Bands | 2400 MHz ... 2484 MHz, VSWR 1.7, Gain 14 dBi |
Antenna family | SENCITY® Spot-M Yagi |
Storage temperature | -40 °C ... 70 °C |
Operation temperature | -40 °C ... 70 °C |
Mast diameter | 25 mm ... 80 mm |
Product code | 1324.17.0116 |
Weight | 0.85 kg |
