1324.17.0113
| H+S | |
|---|---|
| Radome material | PC (Polycarbonate) |
| Ingress protection (IP Rating) | Mated / IP65 |
| Dimensions | 80 mm x 420 mm x 80 mm (Height x Width x Depth) |
| Windload | front: 14 N at 200 km/h, lateral: 134 N at 200 km/h |
| Environment (application) | Indoor/Outdoor |
| Remarks | For further information please refer to data sheet. , The antennas signal ground is electrically isolated from ground of the backplane/bracket.DC grounding of the antenna radiator is achieved by electrical connection to the outer conductor of the RF cable pigtail (signal ground). , Mounting holes M6 (max. 7mm diameter)Bracket: flexible in all 3 axes for tilting and rotation of antenna. Allows mast/roof/wall mounting. |
| Transport temperature | -40 °C ... 70 °C |
| Radome colour | RAL 7044 (grey) |
| Antenna configuration | SiSo |
| Bands | 2400 MHz ... 2484 MHz, VSWR 1.7, Gain 14 dBi |

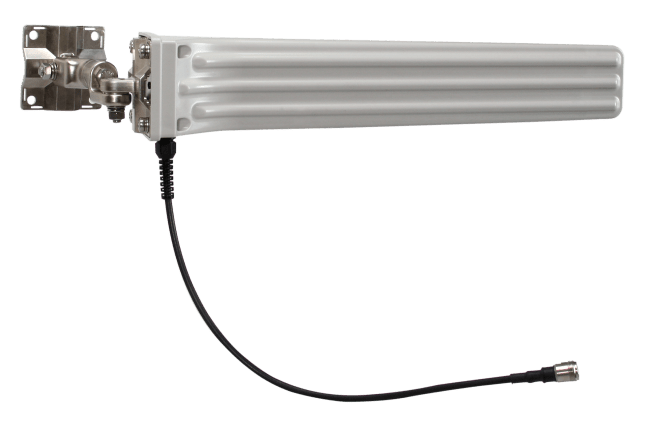

| Antenna family | SENCITY® Spot-M Yagi |
| Storage temperature | -40 °C ... 70 °C |
| Mast diameter | 25 mm ... 80 mm |
| Product code | 1324.17.0113 |
| Weight | 0.85 kg |
| Operation temperature | -40 °C ... 70 °C |
