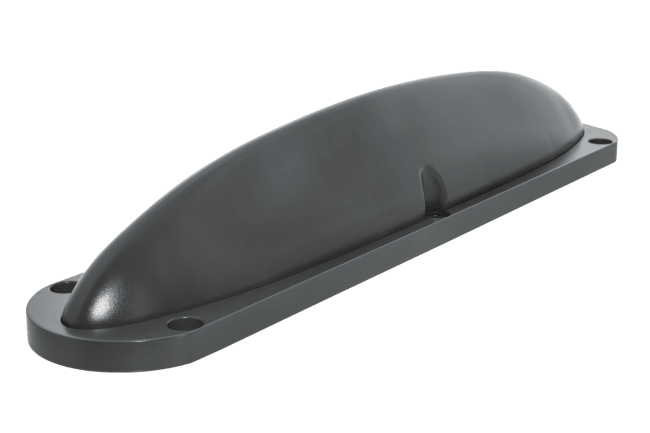

1324.17.0070
H+S | |
---|---|
Radome material | PC (Polycarbonate) |
Ingress protection (IP Rating) | IP67, IP69 |
Dimensions | 85 mm x 100 mm x 510 mm (Height x Width x Depth) |
Windload | Wind Speed survival: 500 km/h |
Environment (application) | Outdoor |
Back plate/base plate material | Aluminum |
Remarks | For further information please refer to data sheet. , Indicated VSWR values are also valid for installations on non-metallic surfaces (no specific ground plane requirements). Indicated gain values will be achieved on a metallic ground plane of 1 x 1 m or larger. , High-voltage-protection: no voltage on RF port, if the catenary line touches the antenna (EN 50124-1, 27.5 kVAC/1min). High-current-protection: Designed acc. to UIC 533, DC-grounded antenna element protection against lightning and short circuit with catenary lines (EN50388, EN 50122-1, 40kA/0.1sec)Corrosion: Low corrosion design according to MIL-F-14072(E), 96 hours Salt Spray test.Mounting: Shall be installed in longitudinal position to the wind/driving direction.Suitable for installation on high-speed trains with a maximum speed of 500 km/hr. |
Transport temperature | -55 °C ... 85 °C |
Radome colour | RAL 7043 (dark grey) |
Solar radiation | UL 746C, F1 |
Bands | 2400 MHz ... 2484 MHz, VSWR 1.5, Gain 13.5 dBi2484 MHz ... 2550 MHz, VSWR 1.5, Gain 13 dBi2550 MHz ... 2600 MHz, VSWR 1.5, Gain 12 dBi2600 MHz ... 2630 MHz, VSWR 1.5, Gain 11 dBi2630 MHz ... 2650 MHz, VSWR 1.5, Gain 10 dBi |
Flammability rating | EN 45545-2 R24 HL3 |
Antenna family | SENCITY® Rail Excel |
Storage temperature | -55 °C ... 85 °C |
Operation temperature | -55 °C ... 85 °C |
Back plate/base plate colour | RAL 7043 (dark grey) |
Product code | 1324.17.0070 |
Weight | 2.2 kg |
