| Height |
500mm |
| Band 5 |
false, false, false, false, false, false |
| Halfp Beamwidth Vertical |
20° |
| Notes |
Omni - directional stick antenna for DECT applications 1880 to 1930 MHz Gain 7 dBi, vertical polarized antenna Ingress protection IP67 (IEC 60529) For outdoor and indoor applications Pole or wall mount |
| Storage Temperature min. |
-55°C |
| Standards 1 |
Industrie EN 60068 |
| Band 7 |
false, false, false, false, false, false |
| Composite power max. |
25W |
| Frequency1 |
1900 |
| Product family |
SENCITY® Omni Stick |
| Ambient temperature |
25°C |
| Radome Colour |
RAL 9003 (signal white) |
| Radome |
Glass Fibre |
| Transport Temperature min. |
-40°C |
| Accessory |
9091.99.0173 |
| Operation Temperature max. |
85°C |
| Gain |
7dBi |
| Environment |
indoor/outdoor |
| Configuration |
SiSo |
| IP Rating |
IP67 |
| Band 8 |
false, false, false, false, false, false |
| Foot notes |
This antenna directly replaces the following obsolete item: 23040486 / 1319.17.0117 |
| Grounding |
true |
| Recycling Label |
true |
| Band 3 |
false, false, false, false, false, false |
| Weight |
0.4kg |
| Storage Temperature max. |
85°C |
| Impedance [Ω] |
50 |
| Connector position |
bottom |
| Connector gender |
jack (female) |
| Band 1 |
false, false, false, false, false, false |
| Band 4 |
false, false, false, false, false, false |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-40°C |
| Polarisation Port |
vertical |
| Transport Temperature max. |
85°C |
| Product is Lead-Free Soldered |
true |
| Mechanical Remarks |
INCLUDED MOUNTING MATERIAL: Bracket 9091.99.0173 and 2 metal-bands for mast-diameter 25mm - 101mm, all piece parts made of stainless steel |
| Band 2 |
false, false, false, false, false, false |
| Halfp Beamwidth Horizont |
360° |
| Mounting1 |
fixed |
| Service1 |
DECT (1.9 GHz) |
| 2002/96/EC (WEEE) |
special marking needed |
| Class |
1367 |
| Connector type |
false |
| Description |

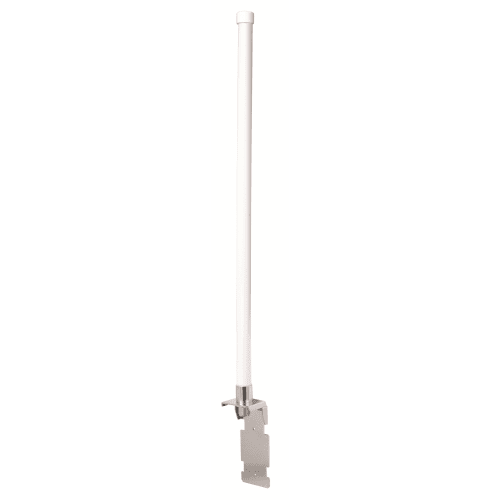

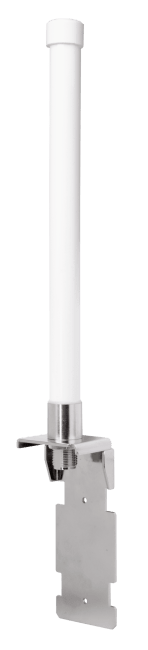

SENCITY Omni-L DECT Antenna |
| Frequency max. 1 |
1930MHz |
| Frequency min. 1 |
1880MHz |
| ID |
1319.17.0121 |
| 2011/65/EC (RoHS) |
compliant |
| VSWR |
1.5 |
| OBJECT_ID |
7233110 |
