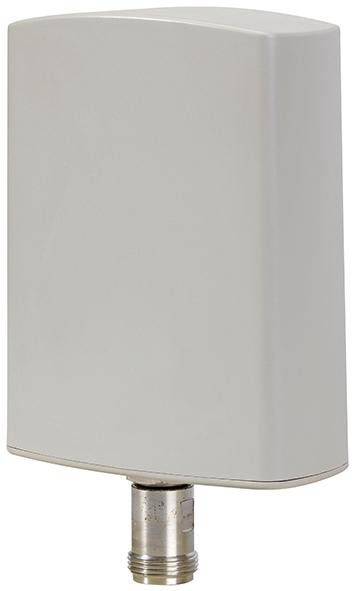

1318.17.0015
H+S | |
---|---|
Radome material | PC (Polycarbonate) |
Ingress protection (IP Rating) | IP 66 / IP 67 |
Dimensions | 101 mm x 81 mm x 36 mm (Height x Width x Depth) |
Windload | front: 15 N at 160km/h, Wind Speed survival: 220 km/h |
Environment (application) | Indoor/Outdoor |
Remarks | For further information please refer to data sheet. |
Transport temperature | -40 °C ... 85 °C |
Radome colour | RAL 7044 (grey) |
Antenna configuration | SiSo |
Solar radiation | UL 746C, F1 |
Bands | 1710 MHz ... 1755 MHz, VSWR 2, Gain 6.5 dBi1755 MHz ... 1910 MHz, VSWR 1.5, Gain 8 dBi1910 MHz ... 1980 MHz, VSWR 2, Gain 7 dBi |
Flammability rating | EN 45545-2 |
Antenna family | SENCITY® Spot-S |
Storage temperature | -40 °C ... 85 °C |
Operation temperature | -40 °C ... 85 °C |
Product code | 1318.17.0015 |
Weight | 0.11 kg |
