| Height |
90mm |
| Band 5 |
false, false, false, false, false, false |
| Notes |
Railway rooftop antenna for GSM-R 900 Rugged design, meets EN 50155 railway standard. Fire retardant acc. to DIN 5510-2, BS 6853, NF F16-101/102, EN 45545-2. Works also on non-metallic surfaces. An alternative antenna type for GSM-R is 741009 / 84460303 |
| Environment remarks |
Environmental testsEN 50155:2007 Flammability ratingDIN 5510-2, BS 6853, NF F16-101/102, EN 45545-2. |
| Storage Temperature min. |
-40°C |
| Standards 1 |
Railway EN 50155 |
| Standards 2 |
Railway EN 45545 |
| Band 7 |
false, false, false, false, false, false |
| Composite power max. |
550W |
| Frequency1 |
690-960 |
| Product family |
SENCITY® Rail |
| Ambient temperature |
25°C |
| Radome Colour |
RAL 7043 (dark grey) |
| Radome |
ASA (acrylic ester-styrene-acrylonitrile) |
| Transport Temperature min. |
-40°C |
| Accessory |
9091.99.0189 |
| Wind Speed operational |
500km/h |
| Operation Temperature max. |
85°C |
| Gain |
6dBi |
| Environment |
outdoor |
| Configuration |
SiSo |
| IP Rating |
IP68 |
| Depth |
260mm |
| Band 8 |
false, false, false, false, false, false |
| Foot notes |
This product meets the Deutsche Bahn specifications for rolling stock equipment. Protected by Patents: US7327320B2, CN1765030B, AU2003218856A1, CA2521771C, SG114406, ZA200508290. |
| Grounding |
true |
| Recycling Label |
false |
| Band 3 |
false, false, false, false, false, false |
| Weight |
1.1kg |
| Width |
100mm |
| Storage Temperature max. |
85°C |
| Impedance [Ω] |
50 |
| Connector position |
bottom |
| Connector gender |
jack (female) |
| Band 1 |
false, false, false, false, false, true |
| Band 4 |
false, false, false, false, false, false |
| Flammability rating |
DIN 5510 |
| Band 6 |
false, false, false, false, false, false |
| Operating Temperature min. |
-40°C |
| Polarisation Port |
vertical |
| Transport Temperature max. |
85°C |
| Survival Wind Speed |
500km/h |
| Product is Lead-Free Soldered |
true |
| Mechanical Remarks |
High-current-protection:Designed acc. to UIC 533, DC-grounded antenna element (protection against lightning and short circuit with catenary lines(40kA/0.1s). Corrosion:Low corrosion design acc. to MIL-F-14072(E). Mounting:Shall be installed in longitudinal position to the wind/driving direction. |
| Band 2 |
false, false, false, false, false, false |
| Mounting1 |
vehicle |
| Service1 |
Cellular (800, 850, 900 MHz) |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1367 |
| Connector type |
false |
| Description |

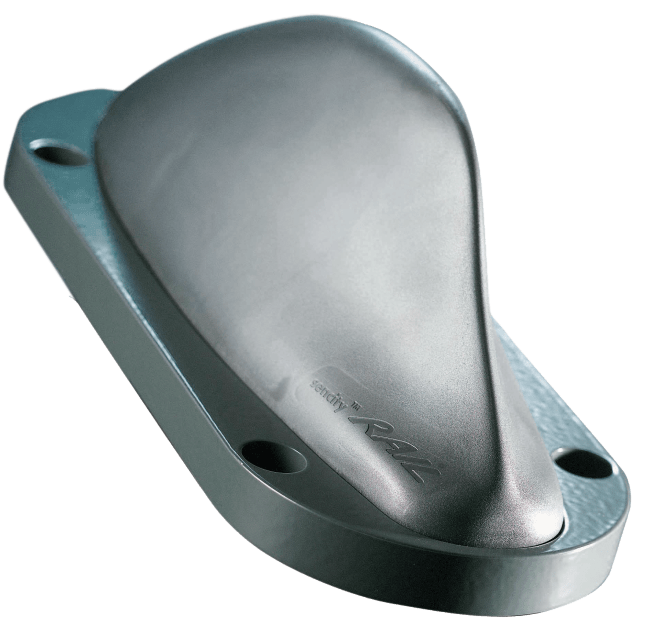

Sencity Rail Antenna |
| Frequency max. 1 |
960MHz |
| Frequency min. 1 |
806MHz |
| ID |
1309.17.0093 |
| 2011/65/EC (RoHS) |
compliant |
| VSWR |
1.5 |
| OBJECT_ID |
8019238 |
