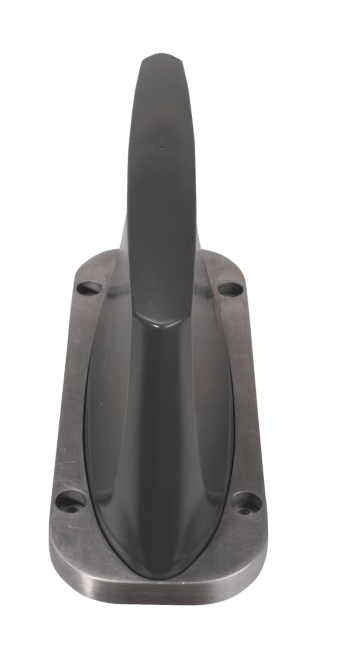

1302.17.0094
H+S | |
---|---|
Radome material | PC (Polycarbonate) |
Ingress protection (IP Rating) | IP67, IP69 |
Dimensions | 154 mm x 100 mm x 256 mm (Height x Width x Depth) |
Windload | Wind Speed survival: 500 km/h |
Environment (application) | Outdoor |
Back plate/base plate material | Aluminum |
Remarks | For further information please refer to data sheet. , Indicated VSWR values are valid for a metallic ground plane of 2.0 x 2.0m or larger. Indicated gain values will be achieved on a metallic ground plane of 1.0 x 1.0 m or larger. , High-voltage-protection: no voltage on RF port, if the catenary line touches antenna (EN 50124-1, 27.5 kVAC/1min). High-current-protection: Designed acc. to UIC 533, DC-grounded antenna element protection against lightning and short circuit with catenary lines (EN50388, EN 50122-1, 40kA/0.125sec)Corrosion: Low corrosion design according to MIL-F-14072(E), 96 hours Salt Spray test.Mounting: Shall be installed in longitudinal position to the wind/driving direction.Suitable for installation on high-speed trains with a maximum speed of 500 km/hr. |
Transport temperature | -55 °C ... 85 °C |
Radome colour | RAL 7043 (dark grey) |
Solar radiation | UL 746C, F1 |
Bands | PTC: 219 MHz ... 98 MHz, VSWR 1.5, Gain 1.72 dBi |
Flammability rating | EN 45545-2 R24 HL3 |
Back plate/base plate plating | Passivated (Plating) |
Storage temperature | -55 °C ... 85 °C |
Operation temperature | -55 °C ... 85 °C |
Back plate/base plate colour | Grey |
Product code | 1302.17.0094 |
Weight | 1.6 kg |
