Flange Type |
square flange |
Terminal Dimension D1 |
2.1 mm |
Terminal Dimension L1 |
2.2 mm |
Tab Style |
solder end |
Flange Dimension |
25.4 X 25.4 |
Weight |
0.0203 kg |
2002/96/EC (WEEE) |
no special marking needed |
Class |
1182 |
2006/1907/EC (REACH) |
compliant |
Body |
Brass |
Body Plating |
SUCOPLATE (R) Plating |
Centre Contact |
Brass |
Centre Contact Plating |
Gold Plating (Nickel underplated) |

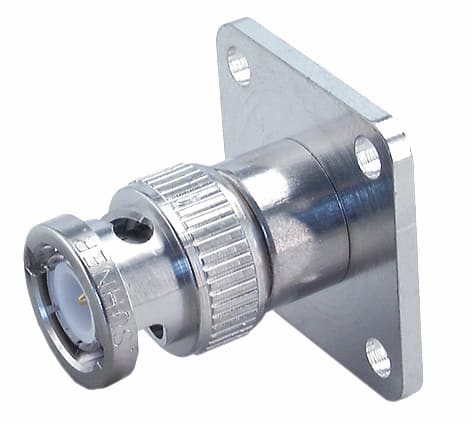

Connector Description |
Straight panel receptacle plug, flange mount |
CONNECTOR SERIES |
BNC |
Coupling Nut |
Brass |
Coupling Nut Plating |
SUCOPLATE (R) Plating |
Gasket |
VMQ (Silicone rubber) |
Gender |
plug |
ID |
13_BNC-50-0-2/133_N |
Impedance |
50 |
Insulator |
PFA / PTFE |
Interface Frequency max. |
4 GHz |
Interface Standards |
IEC 60169-8_MIL-STD-348A/301_CECC 22120 |
Junction |
receptacle |
2011/65/EC (RoHS) |
compliant |
Mounting |
panel |
Number of Matings |
500 |
Operating Temperature max. |
165 °C |
Operating Temperature min. |
-65 °C |
Outer Contact |
Brass |
Outer Contact Plating |
SUCOPLATE (R) Plating |
Packaging |
Single |
PATTERN CLASSES |
13 |
CONNECTOR SHAPE |
straight |
Type Number |
13_BNC-50-0-2/133_NE |
OBJECT_ID |
1598319 |
