| Flange Type |
round flange |
| Fastening Nut Plating |
SUCOPLATE (R) Plating |
| Fastening Nut |
Brass |
| Terminal Dimension D1 |
2 mm |
| Panel Thickness |
3.5 mm |
| Terminal Dimension L2 |
21.3 mm |
| Terminal Dimension L1 |
25.6 mm |
| Tab Style |
solder end |
| Chassis Torque |
2 Nm |
| Washer |
Bronze |
| Flange Dimension |
dia. 14.5 |
| Washer Plating |
SUCOPLATE (R) Plating |
| Weight |
0.0168 kg |
| 2002/96/EC (WEEE) |
no special marking needed |
| Class |
1182 |
| 2006/1907/EC (REACH) |
compliant |
| Body |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Centre Contact |
Brass |
| Centre Contact Plating |
Gold Plating (Nickel underplated) |

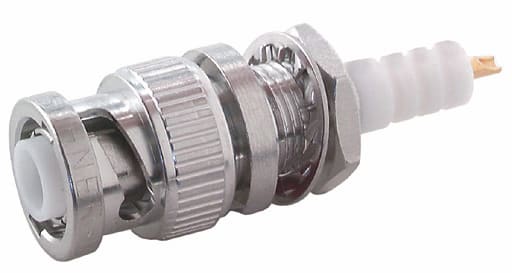

| Connector Description |
Straight bulkhead receptacle plug |
| CONNECTOR SERIES |
H4 |
| Coupling Nut |
Brass |
| Coupling Nut Plating |
SUCOPLATE (R) Plating |
| Gasket |
VMQ (Silicone rubber) |
| Gender |
plug |
| Highlight1 |
Front mount chassis connector |
| ID |
12_H4-50-0-1/133_N |
| Impedance |
50 |
| Insulator |
PFA / PTFE |
| Interface Frequency max. |
0.3 GHz |
| Junction |
receptacle |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
bulkhead |
| Number of Matings |
500 |
| Operating Temperature max. |
165 °C |
| Operating Temperature min. |
-65 °C |
| Outer Contact |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
12 |
| CONNECTOR SHAPE |
straight |
| Type Number |
12_H4-50-0-1/133_NE |
| OBJECT_ID |
2776692 |
