Produktnummer: 84150817
Huber Suhner

Mechanical Thermal Properies Tight bending radii
Impact Standard IEC 60794-1-2 E4
Stripping Tube can be stripped up to 1m in one piece
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Strain relieved with aramide yarn
Wavelength for singlemode at 1550nm, for multimode at 1300nm
Fire Standard Single IEC 60332-1-2
Temperature Standard IEC 60794-1-2 F1
Crush Test Standard IEC 60794-1-2 E3
Fire Standard Bundle IEC 60332-3-25
Other Properties Optimized outer-diameter construction
Comments Fits multi fiber connectors (as MPO® / MTP®)
Trademark LSFH
Class 1032
Cable Type Metal free indoor cable

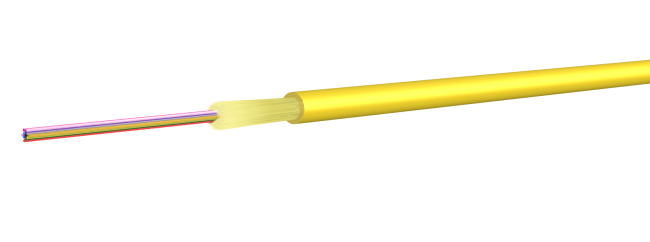

Cable Description OptiPack Cable with 12 Fibers
Outer Jacket Type Outer jacket / flame retardant (LSFH)
Outer Jacket Ø 3mm
Reinforcement Type Reinforcement / aramide yarn
Number of max. Fibres 12
Fire behavior Low smoke, halogen free and self-extinguishing
ID 12-.../(ZN)H-...30
OBJECT_ID 8279357
