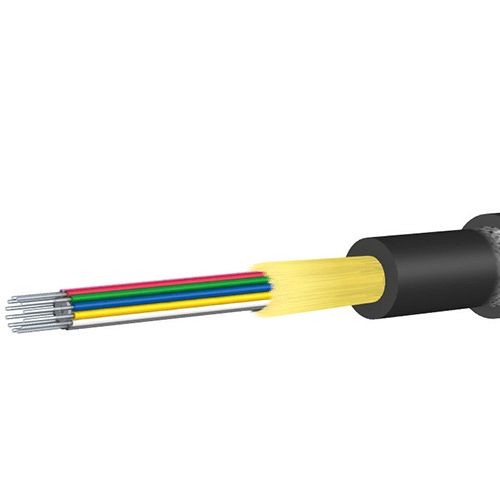

12-E9/FSN(ZN)YZ-G130

Produktnummer: 84034417
Huber Suhner
Lagerbeholdning:

Mechanical Thermal Properies For high mechanical and thermal stability
Tension Test Standard IEC 60794-1-2 E1
Strain Reliefed Armouring Strain relieved with aramide yarn
Wavelength for multimode at 1300nm
Temperature Standard IEC 60794-1-22 F1
Crush Test Standard IEC 60794-1-2 E3
Strength Member Type Strength member
Installation High chemical resistance against acids/alkalies
Comments Drag chain cable
Other Properties2 Improved crush resistance
Class 1032
Application For direct connector assembly
Cable Type Metal free indoor and outdoor cable
Cable Description Ruggedised Field Cable
Outer Jacket Type Outer jacket / TPU
Outer Jacket Ø 13mm
Reinforcement Type Reinforcement / aramide yarn
Number of max. Fibres 12
Tube Type Tight tube
Fire behavior Halogen free and non-corrosive fire gases
ID 12-.../FSN(ZN)YZ-...130
OBJECT_ID 8545198
