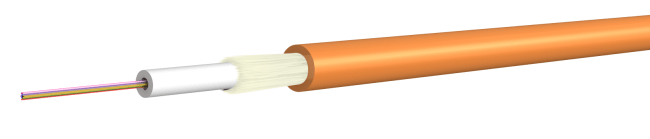

12-12E9/Q(ZNG)H-G85#D
Mechanical Thermal Properies | For high thermal stability |
Water penetr Standard | IEC 60794-1-22 F5B |
Impact Standard | IEC 60794-1-2 E4 |
Tension Test Standard | IEC 60794-1-2 E1 |
Strain Reliefed Armouring | Rodent-protected, glass-armoured |
Wavelength | for singlemode at 1550nm, for multimode at 1300nm |
Fire Standard Single | IEC 60332-1-2 |
Temperature Standard | IEC 60794-1-22 F1 |
Crush Test Standard | IEC 60794-1-2 E3 |
Fire Standard Bundle | IEC 60332-3-24 |
Other Properties | Longitudinal and transversal watertight cable |
Trademark | LSFH |
Class | 1032 |
Application | Jelly free cable construction |
Cable Type | Metal free indoor and outdoor cable |
Cable Description | Multi-fiber Loose Tube Cable |
Outer Jacket Type | Outer jacket / PE flame retardant |
Outer Jacket Ø | 8.5mm |
Reinforcement Type | Reinforcement / glass-roving |
Number of max. Fibres | 24 |
Tube Type | Multi-fiber loose tube, up to 24 fibers each |
Fire behavior | Low smoke, halogen free and self-extinguishing |
ID | 24-.../Q(ZNG)H-...85 |
OBJECT_ID | 6636068 |
