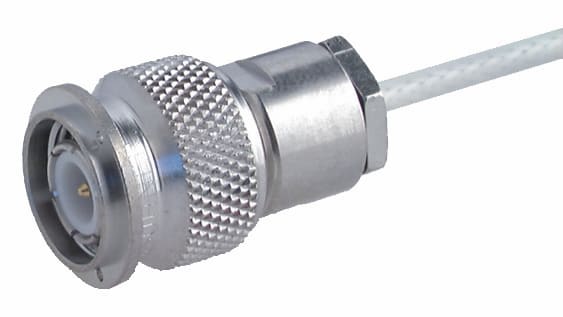

11_TNC-50-3-5/133_NH

Produktnummer: 22660229
Huber Suhner
Lagerbeholdning:

Coaxial connector
|TNC, 50 Ohm, Straight cable male

Cable Group4 X25
Cable Group3 U11
Cable Entry Centre Contact soldered
Cable Entry Outer Contact clamped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group Connectors U7
Cable Group2 U9
Cable Retention Force 129N
Cable1 RG_58_C/U
Cable2 RG_223_/U
Cable3 ENVIROFLEX_142
Cable5 RG_400_/U
Centre Contact Material Brass
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight cable plug
CONNECTOR SERIES TNC
Coupling Nut Material Brass
Coupling Nut Plating SUCOPLATE (R) Plating
Dielectric Size 3mm
Gasket Material VMQ (Silicone rubber)
Gender plug
ID 11_TNC-50-3-5/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 11GHz
Interface Standards IEC 60169-17_MIL-STD-348A/313_CECC 22200
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165°C
Operating Temperature min. -65°C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Bulk 100 pcs
PATTERN CLASSES 11
Weight 0.0196kg
CONNECTOR SHAPE straight
Type Number 11_TNC-50-3-5/133_NH
OBJECT_ID 4519671
