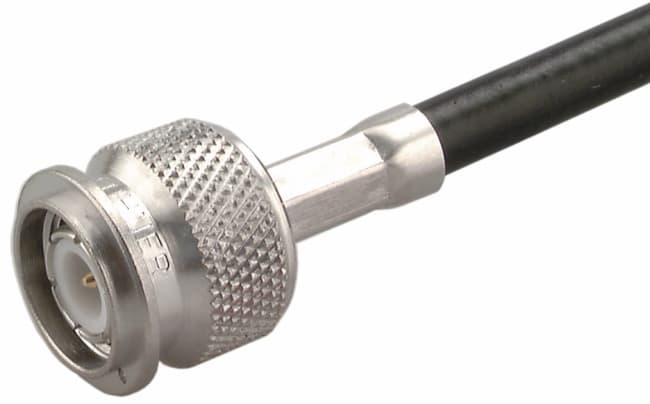

11_TNC-50-3-116/133_NH
Coaxial connector
|TNC, 50 Ohm, Straight cable male
| External Remarks | El. optimized for cable RG_58_C/U |
| Highlight2 | Excellent return loss performance |
| Cable Entry Centre Contact | crimped |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U7 |
| Cable Retention Force | 125N |
| Cable1 | RG_58_C/U |
| Cable2 | GX_03272 |
| Cable3 | G_03232 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | TNC |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 3mm |
| Frequency max. Range1 | 2.5GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| Highlight1 | El. Optimized for cable RG 58 C/U |
| ID | 11_TNC-50-3-116/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 11GHz |
| Interface Standards | IEC 60169-17_MIL-STD-348A/313_CECC 22200 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 11 |
| Return Loss Range1 | 30dB |
| Weight | 0.0139kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_TNC-50-3-116/133_NH |
| VSWR Range 1 | 1.065 |
| OBJECT_ID | 2507360 |
