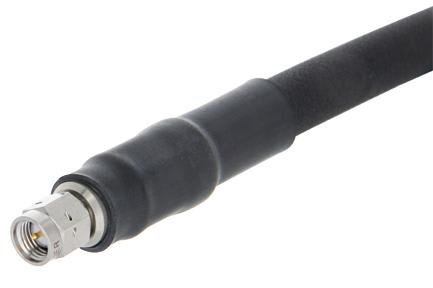

11_SMA-50-4-102/199_NH
Coaxial connector
SMA, 50 Ohm, Straight cable male
| H+S | |
|---|---|
| Suitable cables | SPUMA_240-RS-FR |
| Product code | 11_SMA-50-4-102/199_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Brass / Gold Plating (Nickel underplated) |
| Ingress protection (IP Rating) | Mated / IP67 |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | X34X28 , X34 - 4 mm / 50 OhmX28 - 4 mm / 50 Ohm |
| Standard | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Mating cycles | 500 |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | crimped |
| Interface type | SMA |
| Gender | plug |
| Operation temperature | -65 °C ... 165 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Coupling nut | Stainless Steel (high salt mist resistant) / Passivated (Plating) |
| Outer conductor | Stainless Steel (high salt mist resistant) / Passivated (Plating) |
| Interface frequency | 18 GHz |
| Body | Stainless Steel (high salt mist resistant) / Passivated (Plating) |
| Cable entry centre contact | soldered |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
