11 SMA-50-3-65/119NE

Produktnummer: 22641643
Huber Suhner
Lagerbeholdning:

Cable Group3 Y17
Cable Entry Centre Contact soldered
Cable Entry Outer Contact soldered
Class 1037
Body Material Copper Beryllium Alloy
Body Plating Gold Plating (Nickel underplated)
Cable Group Y5
Cable Group2 Y12
Cable Retention Force 100 N
Cable1 EZ_141_TP_M17
Cable2 SUCOFORM_141
Cable3 MULTIFLEX_141
Centre Contact Material Copper Beryllium Alloy
Centre Contact Plating Gold Plating (Nickel underplated)

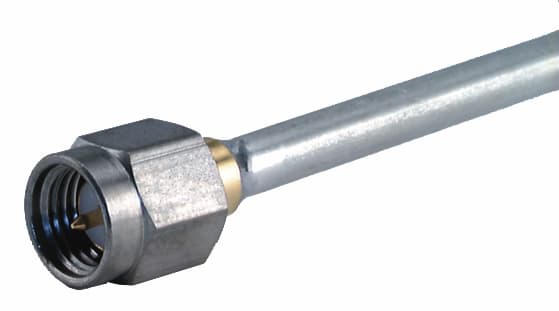

Connector Description Straight cable plug
CONNECTOR SERIES SMA
Coupling Nut Material Stainless Steel
Dielectric Size 3 mm
Gasket Material VMQ (Silicone rubber)
Gender plug
ID 11_SMA-50-3-65/119_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 18 GHz
Interface Standards IEC 60169-15_MIL-STD-348A/310_CECC 22110
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Copper Beryllium Alloy
Outer Contact Plating Gold Plating (Nickel underplated)
Packaging Single
PATTERN CLASSES 11
Weight 0.0025 kg
CONNECTOR SHAPE straight
Type Number 11_SMA-50-3-65/119_NE
OBJECT_ID 2386750
