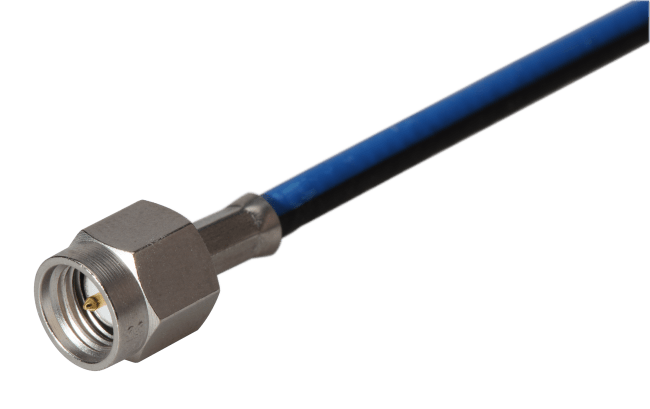

11_SMA-50-2-112/133_NP
Coaxial connector
|SMA, 50 Ohm, Straight cable male
| Cable Group3 | U4 |
| Frequency min. Range3 | 2.5GHz |
| Frequency min. Range2 | 1GHz |
| VSWR Range 2 | 1.07 |
| Return Loss Range2 | 29dB |
| Return Loss Range3 | 26dB |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Frequency max. Range2 | 2.5GHz |
| Frequency max. Range3 | 5GHz |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U4 |
| Cable Group2 | U4 |
| Cable Retention Force | 125N |
| Cable1 | ENVIROFLEX_316_D |
| Cable2 | G_02232_D |
| Cable3 | K_02252_D |
| Centre Contact Material | Brass |
| Centre Contact Plating | SUCOPRO / Gold Plating |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | SMA |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 2mm |
| Frequency max. Range1 | 1GHz |
| Frequency min. Range1 | 0GHz |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| Highlight1 | HUBER+SUHNER ECO |
| ID | 11_SMA-50-2-112/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 18GHz |
| Interface Standards | IEC 60169-15_MIL-STD-348A/310_CECC 22110 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 500 pcs |
| PATTERN CLASSES | 11 |
| Return Loss Range1 | 32dB |
| Weight | 0.0026kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_SMA-50-2-112/133_NP |
| VSWR Range 1 | 1.05 |
| OBJECT_ID | 8445302 |
