11_QN-50-9-1/133_NE

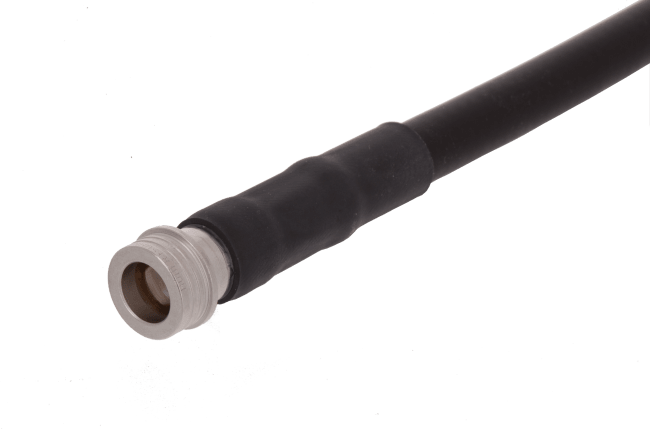

Coaxial connector
QN, 50 Ohm, Straight cable male
| H+S | |
|---|---|
| Interface type | QN |
| Operation temperature | -40 °C ... 125 °C |
| Suitable cables | SPUMA_500-FR-01 |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Product code | 11_QN-50-9-1/133_N |
| Gasket | EPDM (Ethylene propylene diene rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Bronze / SUCOPRO Plating |
| Interface frequency | 11 GHz |
| Available as assembly only | No |
| Cable group | X31 , X31 - 9 mm / 50 Ohm |
| Crimp ferrule | Copper / SUCOPLATE (R) Plating |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | plugged |
| Standard | QN QLF compliant |
| Mating cycles | 100 |
| Impedance | 50 Ω |
| Weight | 0.0313 kg |
| Cable entry outer contact | crimped |
| Gender | plug |
