11_QN-50-4-1/133_NH

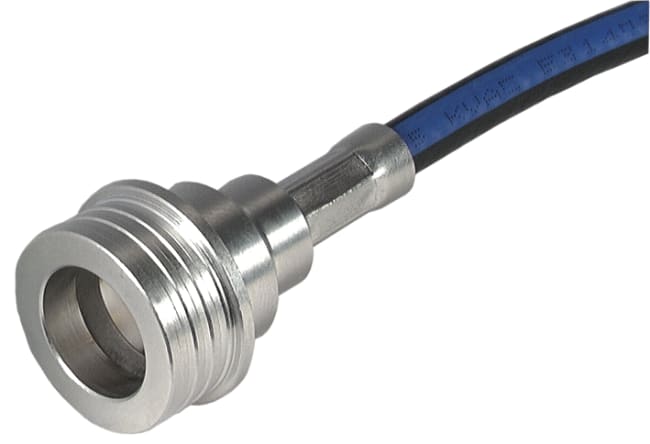

Coaxial connector
QN, 50 Ohm, Straight cable male
| H+S | |
|---|---|
| Interface type | QN |
| Operation temperature | -40 °C ... 125 °C |
| Suitable cables | SPUMA_240 |
| Coupling nut | Brass / SUCOPLATE (R) Plating |
| Outer conductor | Brass / SUCOPLATE (R) Plating |
| Product code | 11_QN-50-4-1/133_N |
| Gasket | EPDM (Ethylene propylene diene rubber) |
| Insulator | PFA / PTFE |
| Centre contact | Brass / SUCOPRO Plating |
| Interface frequency | 11 GHz |
| Available as assembly only | No |
| Cable group | X9X34X28S16 , X9 - 4 mm / 50 OhmX34 - 4 mm / 50 OhmX28 - 4 mm / 50 OhmS16 - 4 mm / 50 Ohm |
| Crimp ferrule | Copper / SUCOPLATE (R) Plating |
| Additional cables | LMR-240SPUMA_240-RS-FR |
| Body | Brass / SUCOPLATE (R) Plating |
| Cable entry centre contact | crimped |
| Standard | QN QLF compliant |
| Mating cycles | 100 |
| Impedance | 50 Ω |
| Cable entry outer contact | crimped |
| Gender | plug |
