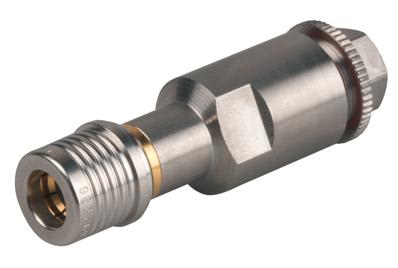

11_QMA-W50-4-4/19-_NE
Coaxial connector
QMA, 50 Ohm, Straight cable male
| H+S | |
|---|---|
| Suitable cables | EACON_4C |
| Product code | 11_QMA-W50-4-4/19-_N |
| Gasket | VMQ (Silicone rubber) |
| Insulator | PTFE (Polytetrafluoroethylene) |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Ingress protection (IP Rating) | Mated / IP67 |
| Details | CAS: 7439-92-1 Lead |
| Available as assembly only | No |
| Cable group | U94 , U94 - EACON_4C |
| Standard | QMA IP 68 rated - QLF compliant |
| Other body part | Copper Beryllium Alloy / SUCOPLATE (R) Plating |
| Mating cycles | 500 |
| Weight | 0.01545 kg |
| Exemptions | 6c |
| Directive | RoHS 2011/65/EU and (EU) 2015/863 |
| Cable entry outer contact | clamped |
| Interface type | QMA |
| Gender | plug |
| Operation temperature | -55 °C ... 125 °C |
| Rating | Compliant with exemption , Contains one or more SVHC >0,1% |
| Outer conductor | Stainless Steel / Passivated (Plating) |
| Interface frequency | 6 GHz |
| Body | Stainless Steel / Passivated (Plating) |
| Cable entry centre contact | plugged |
| Impedance | 50 Ω |
| Regulation | REACH 1907/2006 Article 33 SVHC |
