11_QMA-W50-2-8/133_NH

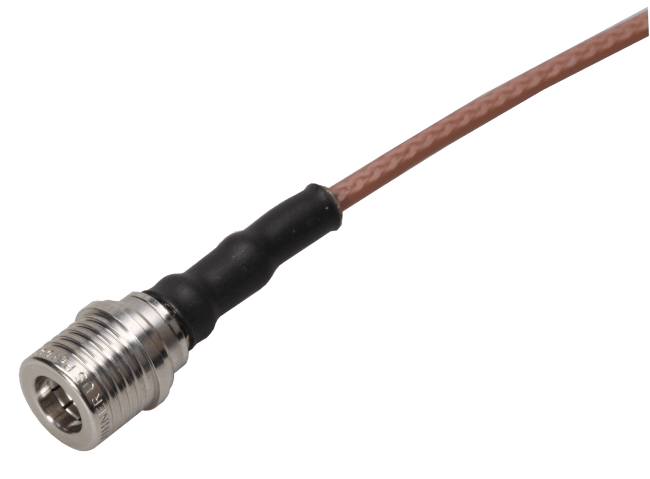

Coaxial connector
|QMA, 50 Ohm, Straight cable male
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U2 |
| Cable1 | ENVIROFLEX_316 |
| Cable2 | RG_174_/U |
| Cable3 | RG_316_/U |
| Centre Contact Material | Brass |
| Centre Contact Plating | SUCOPRO Plating |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | QMA |
| Crimp Ferrule Material | Copper |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 2mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| Highlight1 | Ingress protection according to IP68 |
| ID | 11_QMA-W50-2-8/133_N |
| Impedance | 50 |
| Insulator Material | PTFE (Polytetrafluoroethylene) |
| Interface Frequency max. | 18GHz |
| Interface Standards | QMA IP 68 rated - QLF compliant |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 100 |
| Operating Temperature max. | 105°C |
| Operating Temperature min. | -40°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 11 |
| Weight | 0.0047kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_QMA-W50-2-8/133_NH |
| OBJECT_ID | 3019034 |
