| Cable Group3 |
X28 |
| Frequency min. Range3 |
4 GHz |
| Frequency min. Range2 |
2 GHz |
| VSWR Range 3 |
1.162 |
| VSWR Range 2 |
1.094 |
| Return Loss Range2 |
27 dB |
| Return Loss Range3 |
22.5 dB |
| Cable4 |
SPUMA_240 |
| Cable Entry Centre Contact |
plugged |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Frequency max. Range2 |
4 GHz |
| Frequency max. Range3 |
6 GHz |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
S16 |
| Cable Group2 |
X9 |
| Cable1 |
S_04262_D |
| Cable2 |
S_04262_D-03 |
| Cable3 |
SX_04272_D-02 |
| Centre Contact Material |
Bronze |
| Centre Contact Plating |
SUCOPRO Plating |

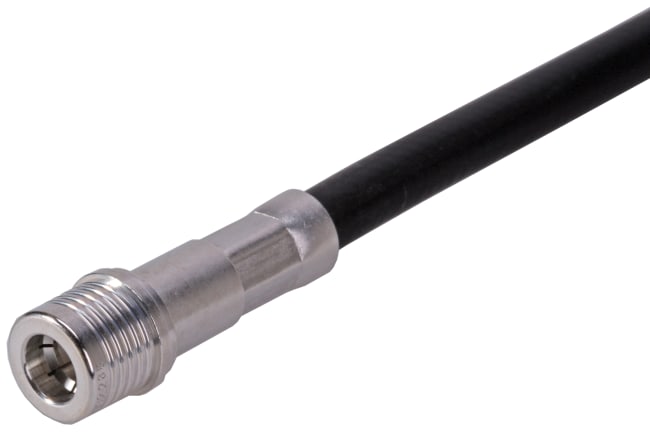

| Connector Description |
Straight cable plug |
| CONNECTOR SERIES |
QMA |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
4 mm |
| Frequency max. Range1 |
2 GHz |
| Frequency min. Range1 |
0.1 GHz |
| Gender |
plug |
| Highlight1 |
QuickLock Interface |
| ID |
11_QMA-50-4-2/133_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
18 GHz |
| Interface Standards |
QMA QLF compliant |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
100 |
| Operating Temperature max. |
85 °C |
| Operating Temperature min. |
-40 °C |
| Outer Contact Material |
Brass |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Bulk 100 pcs |
| PATTERN CLASSES |
11 |
| Return Loss Range1 |
31.5 dB |
| Weight |
0.0076 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
11_QMA-50-4-2/133_NH |
| VSWR Range 1 |
1.055 |
| OBJECT_ID |
7699403 |
