11_QMA-50-3-3/133_NH

Produktnummer: 23017696
Huber Suhner
Lagerbeholdning:

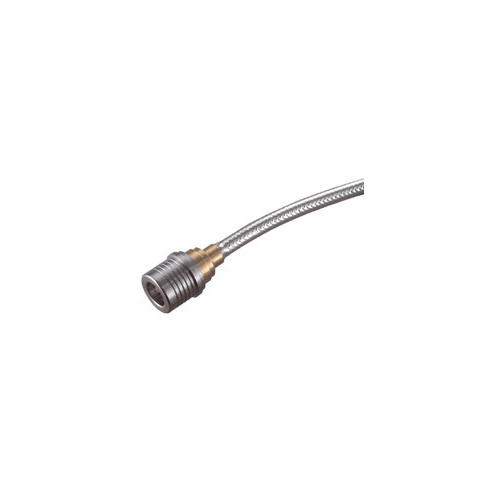

Coaxial connector
|QMA, 50 Ohm, Straight cable female

Cable Group3 Y17
Frequency min. Range3 4GHz
Frequency min. Range2 2.5GHz
VSWR Range 3 1.119
VSWR Range 2 1.083
Return Loss Range2 28dB
Return Loss Range3 25dB
Cable Entry Centre Contact plugged
Cable Entry Outer Contact soldered
Class 1037
Body Material Brass
Frequency max. Range2 4GHz
Frequency max. Range3 5GHz
Body Plating SUCOPRO Plating
Cable Group Connectors Y5
Cable Group2 Y12
Cable1 SUCOFORM_141
Cable2 EZ_141_TP_M17
Cable3 MULTIFLEX_141
Centre Contact Material Copper Beryllium / Bronze
Centre Contact Plating SUCOPRO Plating
Connector Description Straight cable plug
CONNECTOR SERIES QMA
Dielectric Size 3mm
Frequency max. Range1 2.5GHz
Frequency min. Range1 0GHz
Gender plug
Highlight1 QuickLock Interface
ID 11_QMA-50-3-3/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 18GHz
Interface Standards QMA QLF compliant
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 100
Operating Temperature max. 85°C
Operating Temperature min. -40°C
Outer Contact Material Bronze
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Bulk 100 pcs
PATTERN CLASSES 11
Return Loss Range1 32dB
Weight 0.0045kg
CONNECTOR SHAPE straight
Type Number 11_QMA-50-3-3/133_NH
VSWR Range 1 1.051
OBJECT_ID 2781561
