| Cable Entry Centre Contact |
crimped |
| Cable Entry Outer Contact |
crimped |
| Class |
1037 |
| Body Material |
Brass |
| Body Plating |
SUCOPLATE (R) Plating |
| Cable Group |
U2 |
| Cable1 |
RG_316_/U |
| Cable2 |
ENVIROFLEX_316 |
| Cable3 |
RG_188_A/U |
| Cable5 |
RG_174_/U |
| Centre Contact Material |
Brass |
| Centre Contact Plating |
SUCOPRO Plating |

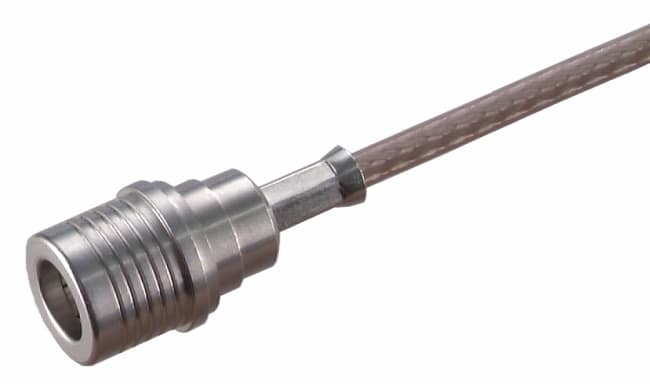

| Connector Description |
Straight cable plug |
| CONNECTOR SERIES |
QMA |
| Crimp Ferrule Material |
Copper |
| Crimp Ferrule Plating |
SUCOPLATE (R) Plating |
| Dielectric Size |
2 mm |
| Gender |
plug |
| Highlight1 |
QuickLock Interface |
| ID |
11_QMA-50-2-2/133_N |
| Impedance |
50 |
| Insulator Material |
PFA / PTFE |
| Interface Frequency max. |
18 GHz |
| Interface Standards |
QMA QLF compliant |
| Junction |
cable |
| 2011/65/EC (RoHS) |
compliant |
| Mounting |
none |
| Number of Matings |
100 |
| Operating Temperature max. |
85 °C |
| Operating Temperature min. |
-40 °C |
| Outer Contact Material |
Bronze |
| Outer Contact Plating |
SUCOPLATE (R) Plating |
| Packaging |
Single |
| PATTERN CLASSES |
11 |
| Weight |
0.0041 kg |
| CONNECTOR SHAPE |
straight |
| Type Number |
11_QMA-50-2-2/133_NE |
| OBJECT_ID |
4649173 |
