11 QLA-01-3-1/122NE

Produktnummer: 22641313
Huber Suhner
Lagerbeholdning:

Cable Entry Centre Contact crimped
Cable Entry Outer Contact crimped
Class 1037
Body Material Brass
Body Plating Nickel Plating
Cable Group Connectors U7
Cable Retention Force 125 N
Cable1 RG_58_C/U
Cable2 G_03232
Cable3 GX_03272
Centre Contact Material Brass
Centre Contact Plating Gold Plating (Nickel underplated)

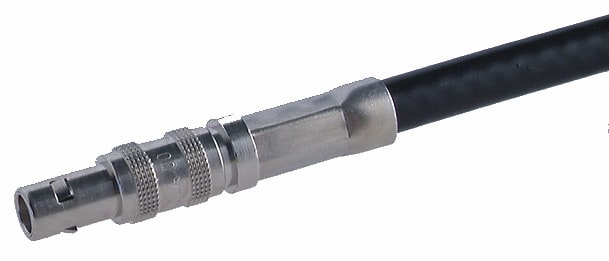

Connector Description Straight cable plug
CONNECTOR SERIES QLA-01
Crimp Ferrule Material Copper
Crimp Ferrule Plating SUCOPLATE (R) Plating
Dielectric Size 3 mm
Gender plug
Highlight1 SUHNER full crimp cable attachement
ID 11_QLA-01-3-1/122_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 1.4 GHz
Interface Standards NIM-CAMAC-Standard CD/N549
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 10000
Operating Temperature max. 150 °C
Operating Temperature min. -55 °C
Outer Contact Material Brass
Outer Contact Plating Nickel Plating
Packaging Single
PATTERN CLASSES 11
Weight 0.0054 kg
CONNECTOR SHAPE straight
Type Number 11_QLA-01-3-1/122_NE
OBJECT_ID 2862549
