11_PC185-50-2-5/19-_NE

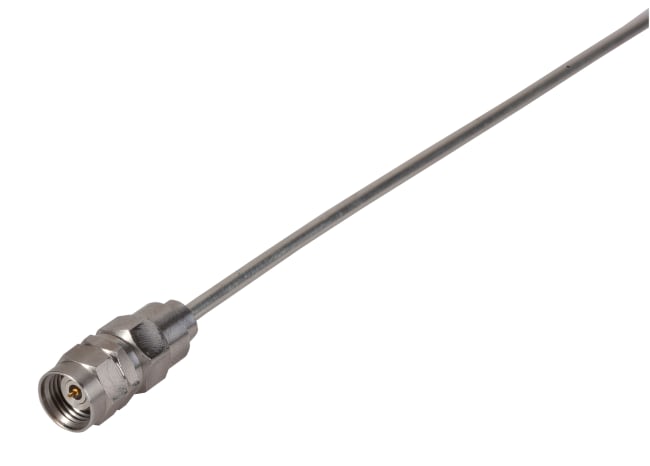

Coaxial connector
|PC 1.85, 50 Ohm, Straight cable male
| Cable Entry Centre Contact | plugged |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Stainless Steel |
| Body Plating | Passivated (Plating) |
| Cable Group Connectors | U99 |
| Cable1 | SR_86_LA |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | SUCOPRO / Gold Plating |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | PC 1.85 |
| Coupling Nut Material | Stainless Steel |
| Coupling Nut Plating | Passivated (Plating) |
| Dielectric Size | 2mm |
| Gender | plug |
| ID | 11_PC185-50-2-5/19-_NE |
| Impedance | 50 |
| Insulator Material | LCP (Liquid crystal polymer) |
| Interface Frequency max. | 67GHz |
| Interface Standards | IEC 61169-32 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 125°C |
| Operating Temperature min. | -55°C |
| Outer Contact Material | Stainless Steel |
| Outer Contact Plating | Passivated (Plating) |
| Packaging | Single |
| PATTERN CLASSES | 11 |
| CONNECTOR SHAPE | straight |
| Type Number | 11_PC185-50-2-5/19-_NE |
| OBJECT_ID | 8213460 |
