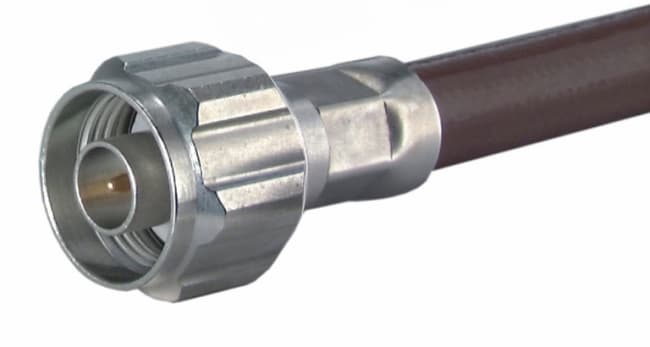

11 N-50-7-49/133NE (S07262BD)
Cable Entry Centre Contact | crimped |
Cable Entry Outer Contact | crimped |
Class | 1037 |
Body Material | Brass |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | S32 |
Cable Retention Force | 660 N |
Cable1 | S_07262_BD |
Cable2 | S_07212_BD |
Centre Contact Material | Brass |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight cable plug |
CONNECTOR SERIES | N |
Coupling Nut Material | Brass |
Coupling Nut Plating | SUCOPLATE (R) Plating |
Crimp Ferrule Material | Brass |
Crimp Ferrule Plating | SUCOPLATE (R) Plating |
Dielectric Size | 7 mm |
Gasket Material | VMQ (Silicone rubber) |
Gender | plug |
Highlight1 | SUHNER full crimp cable attachement |
ID | 11_N-50-7-49/133_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 11 GHz |
Interface Standards | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 165 °C |
Operating Temperature min. | -65 °C |
Outer Contact Material | Brass |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Single |
PATTERN CLASSES | 11 |
Weight | 0.0431 kg |
CONNECTOR SHAPE | straight |
Type Number | 11_N-50-7-49/133_NE |
OBJECT_ID | 2329130 |
