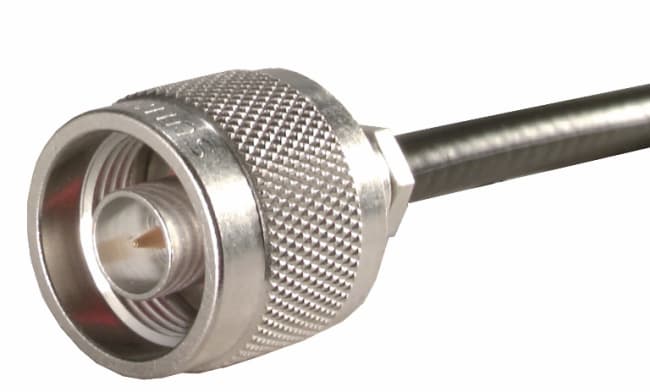

11 N-50-3-54/133NE

Produktnummer: 22642009
Huber Suhner
Lagerbeholdning:

Cable Group3 X25
Frequency min. Range3 10 GHz
Frequency min. Range2 4 GHz
VSWR Range 3 1.25
VSWR Range 2 1.2
Return Loss Range2 21 dB
Return Loss Range3 19 dB
Cable Entry Centre Contact soldered
Cable Entry Outer Contact clamped
Class 1037
Body Material Brass
Frequency max. Range2 10 GHz
Frequency max. Range3 12.4 GHz
Body Plating SUCOPLATE (R) Plating
Cable Group Connectors U9
Cable Group2 U11
Cable Retention Force 258 N
Cable1 RG_223_/U
Cable2 RG_142_B/U
Centre Contact Material Brass
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight cable plug
CONNECTOR SERIES N
Coupling Nut Material Brass
Coupling Nut Plating SUCOPLATE (R) Plating
Dielectric Size 3 mm
Frequency max. Range1 4 GHz
Frequency min. Range1 N GHz
Gasket Material VMQ (Silicone rubber)
Gender plug
Highlight1 Precision connector
ID 11_N-50-3-54/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 18 GHz
Interface Standards IEC 61169-16_MIL-STD-348A/304_CECC 22210
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Single
PATTERN CLASSES 11
Return Loss Range1 26 dB
Weight 0.0321 kg
CONNECTOR SHAPE straight
Type Number 11_N-50-3-54/133_NE
VSWR Range 1 1.1
OBJECT_ID 1602394
