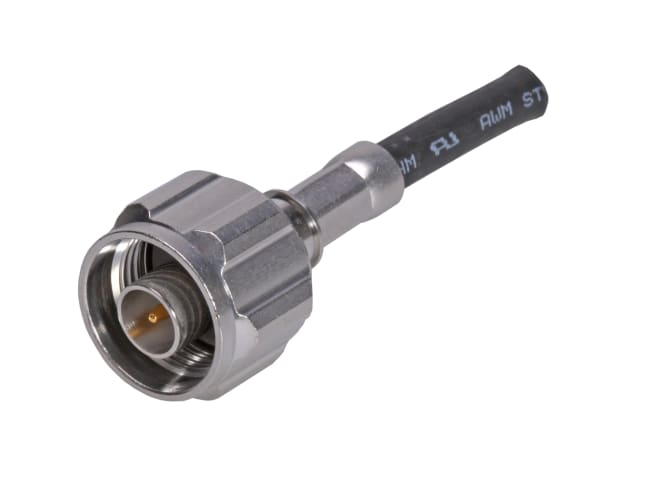

11 N-50-3-29/133 NH

Produktnummer: 22651466
Huber Suhner
Lagerbeholdning:

Cable Entry Centre Contact crimped
Cable Entry Outer Contact crimped
Class 1037
Body Material Brass
Body Plating SUCOPLATE (R) Plating
Cable Group Connectors U9
Cable Retention Force 258 N
Cable1 RG_223_/U
Cable2 RG_142_B/U
Cable3 ENVIROFLEX_142
Cable5 RADOX_RF_142
Centre Contact Material Brass
Centre Contact Plating Gold Plating (Nickel underplated)
Connector Description Straight cable plug
CONNECTOR SERIES N
Coupling Nut Material Brass
Coupling Nut Plating SUCOPLATE (R) Plating
Crimp Ferrule Material Copper
Crimp Ferrule Plating SUCOPLATE (R) Plating
Dielectric Size 3 mm
Gasket Material VMQ (Silicone rubber)
Gender plug
Highlight1 SUHNER full crimp cable attachement
ID 11_N-50-3-29/133_N
Impedance 50
Insulator Material PFA / PTFE
Interface Frequency max. 11 GHz
Interface Standards IEC 61169-16_MIL-STD-348A/304_CECC 22210
Junction cable
2011/65/EC (RoHS) compliant
Mounting none
Number of Matings 500
Operating Temperature max. 165 °C
Operating Temperature min. -65 °C
Outer Contact Material Brass
Outer Contact Plating SUCOPLATE (R) Plating
Packaging Bulk 100 pcs
PATTERN CLASSES 11
Weight 0.0275 kg
CONNECTOR SHAPE straight
Type Number 11_N-50-3-29/133_NH
OBJECT_ID 7516745
