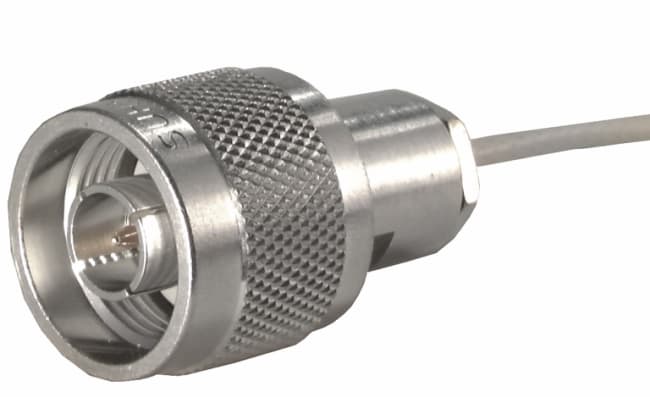

11 N-50-2-2/133NE
| Fastening Nut Plating | SUCOPLATE (R) Plating |
| Fastening Nut Material | Brass |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | clamped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | U4 |
| Cable Retention Force | 109 N |
| Cable1 | K_02252_D |
| Cable2 | ENVIROFLEX_316_D |
| Cable3 | G_02232_D |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | N |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Crimp Ferrule Material | Brass |
| Crimp Ferrule Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 2 mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| ID | 11_N-50-2-2/133_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 11 GHz |
| Interface Standards | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165 °C |
| Operating Temperature min. | -65 °C |
| Outer Contact Material | Brass |
| Outer Contact Plating | SUCOPLATE (R) Plating |
| Packaging | Single |
| PATTERN CLASSES | 11 |
| Weight | 0.0367 kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_N-50-2-2/133_NE |
| OBJECT_ID | 1602316 |
