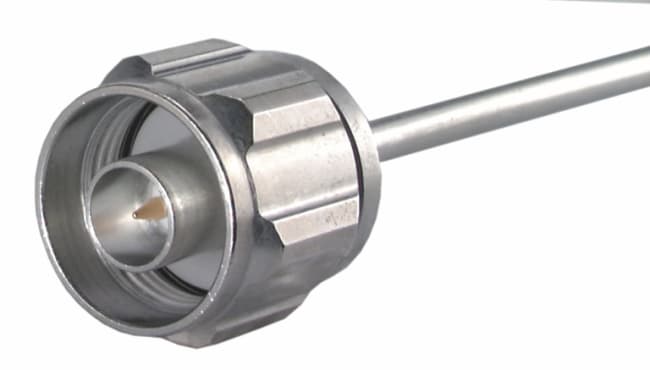

11 N-50-2-15/113 UE
Coaxial connector
|N, 50 Ohm, Straight cable male
| Cable Group3 | Y16 |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPLATE (R) Plating |
| Cable Group Connectors | Y3 |
| Cable Group2 | Y11 |
| Cable Retention Force | 158N |
| Cable1 | EZ_86_TP_M17 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (without Nickel underplating) |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | false |
| Coupling Nut Material | Brass |
| Coupling Nut Plating | SUCOPLATE (R) Plating |
| Dielectric Size | 2mm |
| Gasket Material | VMQ (Silicone rubber) |
| Gender | plug |
| ID | 11_N-50-2-15/113_U |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 18GHz |
| Interface Standards | IEC 61169-16_MIL-STD-348A/304_CECC 22210 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 165°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Bronze |
| Outer Contact Plating | Gold Plating (without Nickel underplating) |
| Packaging | Single |
| PATTERN CLASSES | 11 |
| Weight | 0.0256kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_N-50-2-15/113_UE |
| OBJECT_ID | 2465432 |
