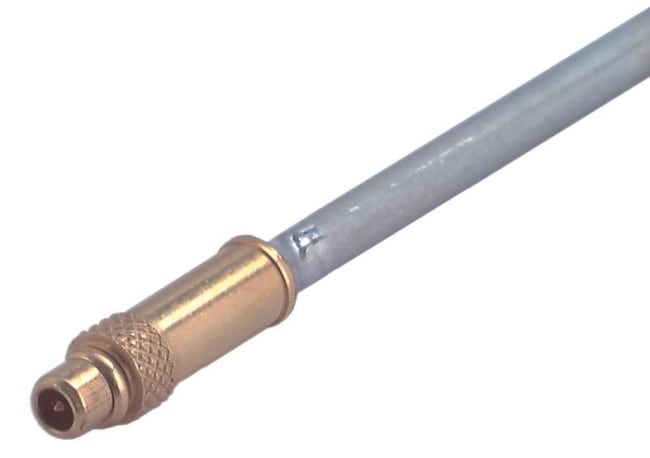

11 MMCX-50-2-1/111OE
Coaxial connector
MMCX, 50 Ohm, Straight cable male
| H+S | |
|---|---|
| Interface type | MMCX |
| Operation temperature | -55 °C ... 155 °C |
| Outer conductor | Brass / Gold Plating (without Nickel underplating) |
| Product code | 11_MMCX-50-2-1/111_O |
| Insulator | PFA / PTFE |
| Centre contact | Copper Beryllium Alloy / Gold Plating (Nickel underplated) |
| Interface frequency | 6 GHz |
| Available as assembly only | No |
| Cable group | Y3Y16Y11 , Y3 - 2 mm / 50 OhmY16 - 2 mm / 50 OhmY11 - 2 mm / 50 Ohm |
| Body | Brass / Gold Plating (without Nickel underplating) |
| Cable entry centre contact | crimped |
| Standard | HUBER+SUHNER-MMCX |
| Mating cycles | 500 |
| Impedance | 50 Ω |
| Weight | 0.0004 kg |
| Cable entry outer contact | soldered |
| Gender | plug |
