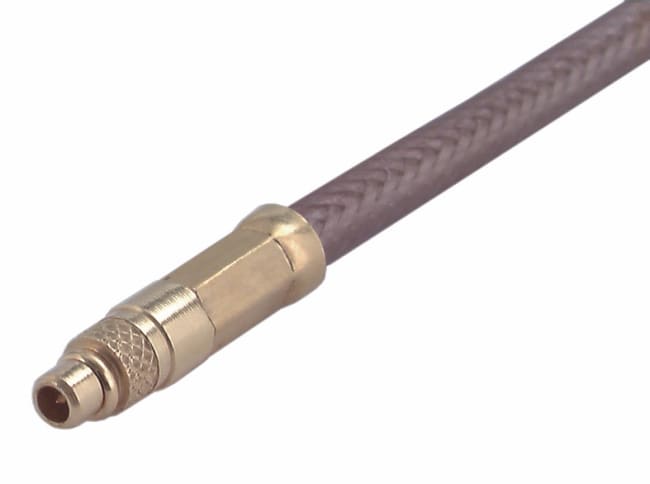

11 MMCX-50-1-1/111OE
Coaxial connector
|MMCX, 50 Ohm, Straight cable male
| Engangement Force max. | 15N |
| Disengagement Force max. | 15N |
| Disengagement Force min. | 6N |
| Cable Entry Centre Contact | crimped |
| Cable Entry Outer Contact | crimped |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | Gold Plating (without Nickel underplating) |
| Cable Group Connectors | U1 |
| Cable Retention Force | 32N |
| Cable1 | RG_178_B/U |
| Cable2 | RG_196_A/U |
| Cable3 | RG_196_A/U |
| Centre Contact Material | Copper Beryllium Alloy |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | MMCX |
| Crimp Ferrule Material | Brass |
| Crimp Ferrule Plating | Gold Plating (without Nickel underplating) |
| Dielectric Size | 1mm |
| Gender | plug |
| Highlight1 | SUHNER full crimp cable attachement |
| ID | 11_MMCX-50-1-1/111_O |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 6GHz |
| Interface Standards | SUHNER-MMCX |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -55°C |
| Outer Contact Material | Brass |
| Outer Contact Plating | Gold Plating (without Nickel underplating) |
| Packaging | Single |
| PATTERN CLASSES | 11 |
| Weight | 0.0009kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_MMCX-50-1-1/111_OE |
| OBJECT_ID | 3019145 |
