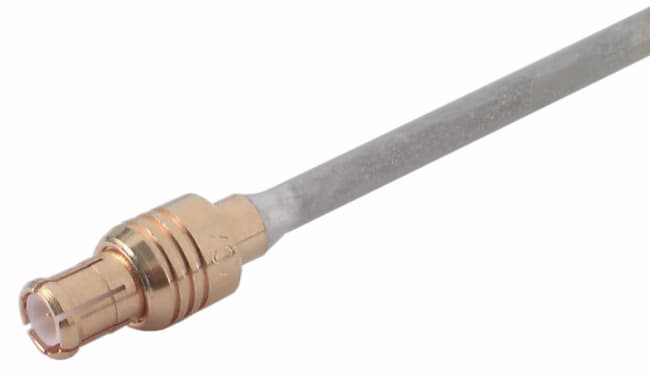

11_MCX-50-2-19/111_NH
Coaxial connector
|MCX, 50 Ohm, Straight cable male
| Cable Group3 | Y16 |
| Engangement Force max. | 25N |
| Disengagement Force max. | 20N |
| Disengagement Force min. | 8N |
| Cable Entry Centre Contact | soldered |
| Cable Entry Outer Contact | soldered |
| Class | 1037 |
| Body Material | Brass |
| Body Plating | SUCOPRO Plating |
| Cable Group Connectors | Y3 |
| Cable Group2 | Y11 |
| Cable Retention Force | 158N |
| Cable1 | EZ_86_TP_M17 |
| Centre Contact Material | Brass |
| Centre Contact Plating | Gold Plating (Nickel underplated) |
| Connector Description | Straight cable plug |
| CONNECTOR SERIES | MCX |
| Dielectric Size | 2mm |
| Gender | plug |
| ID | 11_MCX-50-2-19/111_N |
| Impedance | 50 |
| Insulator Material | PFA / PTFE |
| Interface Frequency max. | 6GHz |
| Interface Standards | IEC 60169-36_CECC 22220 |
| Junction | cable |
| 2011/65/EC (RoHS) | compliant |
| Mounting | none |
| Number of Matings | 500 |
| Operating Temperature max. | 155°C |
| Operating Temperature min. | -65°C |
| Outer Contact Material | Copper Beryllium Alloy |
| Outer Contact Plating | SUCOPRO Plating |
| Packaging | Bulk 100 pcs |
| PATTERN CLASSES | 11 |
| Weight | 0.0006kg |
| CONNECTOR SHAPE | straight |
| Type Number | 11_MCX-50-2-19/111_NH |
| OBJECT_ID | 3019110 |
