11_MCX-50-2-16/133_NH

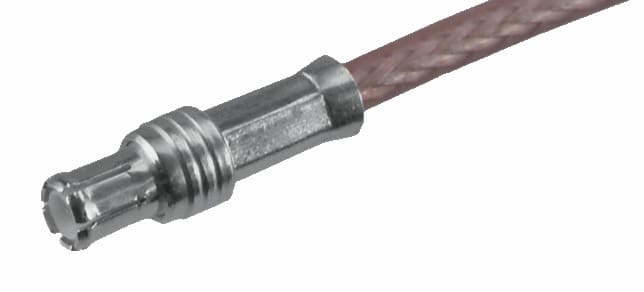

Coaxial connector
|MCX, 50 Ohm, Straight cable male
Frequency min. Range3 | 2.5GHz |
Frequency min. Range2 | 1GHz |
VSWR Range 3 | 1.07 |
VSWR Range 2 | 1.06 |
Engangement Force max. | 25N |
Disengagement Force max. | 20N |
Return Loss Range2 | 31dB |
Return Loss Range3 | 30dB |
Disengagement Force min. | 8N |
Cable Entry Centre Contact | crimped |
Cable Entry Outer Contact | crimped |
Class | 1037 |
Body Material | Brass |
Frequency max. Range2 | 2.5GHz |
Frequency max. Range3 | 6GHz |
Body Plating | SUCOPLATE (R) Plating |
Cable Group Connectors | U2 |
Cable Retention Force | 54N |
Cable1 | ENVIROFLEX_316 |
Cable2 | RG_316_/U |
Cable3 | RG_188_A/U |
Cable5 | RG_174_/U |
Centre Contact Material | Brass |
Centre Contact Plating | Gold Plating (Nickel underplated) |
Connector Description | Straight cable plug |
CONNECTOR SERIES | MCX |
Crimp Ferrule Material | Copper |
Crimp Ferrule Plating | SUCOPLATE (R) Plating |
Dielectric Size | 2mm |
Frequency max. Range1 | 1GHz |
Frequency min. Range1 | 0GHz |
Gender | plug |
Highlight1 | SUHNER full crimp cable attachement |
ID | 11_MCX-50-2-16/133_N |
Impedance | 50 |
Insulator Material | PFA / PTFE |
Interface Frequency max. | 6GHz |
Interface Standards | IEC 60169-36_CECC 22220 |
Junction | cable |
2011/65/EC (RoHS) | compliant |
Mounting | none |
Number of Matings | 500 |
Operating Temperature max. | 155°C |
Operating Temperature min. | -55°C |
Outer Contact Material | Copper Beryllium Alloy |
Outer Contact Plating | SUCOPLATE (R) Plating |
Packaging | Bulk 100 pcs |
PATTERN CLASSES | 11 |
Return Loss Range1 | 39dB |
Weight | 0.0009kg |
CONNECTOR SHAPE | straight |
Type Number | 11_MCX-50-2-16/133_NH |
VSWR Range 1 | 1.023 |
OBJECT_ID | 4650839 |
